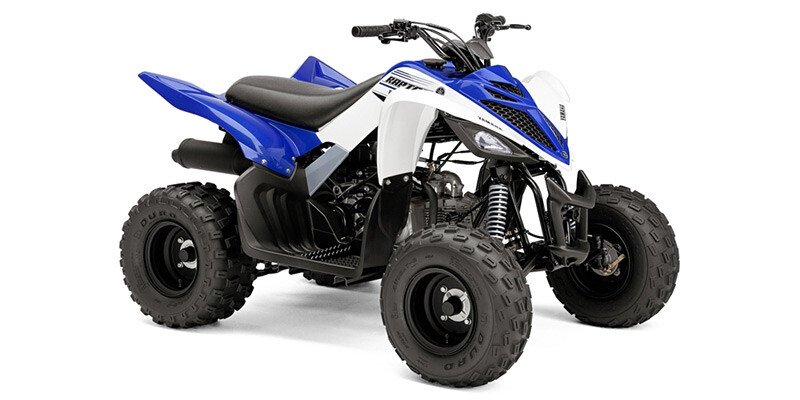

2017 Yamaha Raptor 125 90 Specifications

Vehicle Specifications

2017 Yamaha Raptor 125 90

• Front Brake Type
  Dual Sealed Drum
• Rear Brake Type
  Drum
• Fuel Capacity (gal)
  1.7
• Fuel Capacity (l)
  6.4
• Carburetion Type
  Carburetor
• Wheelbase (in)
  40.6
• Wheelbase (mm)
  1031.2
• Compression Ratio
  9.2:1
• Cylinders
  1
• Displacement (cc)
  90
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Electric / Kick
• Valve Configuration
  SOHC
• Generic Type (Primary)
  Youth
• Revision Status
  Carryover
• MSRP
  2899
• Warranty (Months)
  6
• Number Of Seats
  1
• Seat Height (in)
  29.5
• Seat Height (mm)
  749.3
• Front Tire (Full Spec)
  Duro AT 18 X 7-8
• Rear Tire (Full Spec)
  Duro AT 18 X 9-8
• Primary Drive (Rear Wheel)
  Chain
• Transmission Type
  Continuously Variable (CVT)
• Windshield
  Not Available
