2018 Gas Specifications

Vehicle Specifications

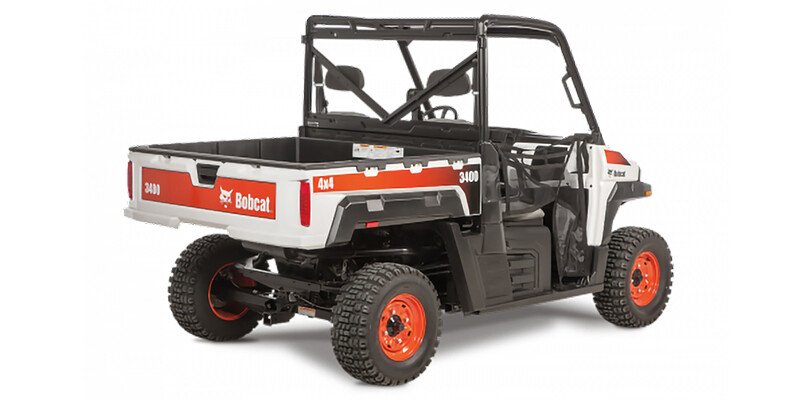

2018 Bobcat 3400 Gas

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  10
• Fuel Capacity (l)
  38
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  84
• Wheelbase (mm)
  2134
• Compression Ratio
  10:1
• Cylinders
  1
• Displacement (cc)
  570
• Engine Brand Name
  ProStar™
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Horsepower (bhp)
  40
• Starter
  Electric
• Valve Configuration
  OHV
• Generic Type (Primary)
  Utility
• Revision Status
  Carryover
• Warranty (Months)
  12
• Number Of Seats
  2
• Tachometer
  Standard
• Front Tire (Full Spec)
  25 x 10 - 12
• Rear Tire (Full Spec)
  25 x 11 - 12
• Primary Drive (Rear Wheel)
  Shaft
• Transmission Type
  Continuously Variable (CVT)
• Dry Weight (kg)
  744
• Dry Weight (lbs)
  1640
• Windshield
  Standard
