2018 Diesel Specifications

Vehicle Specifications

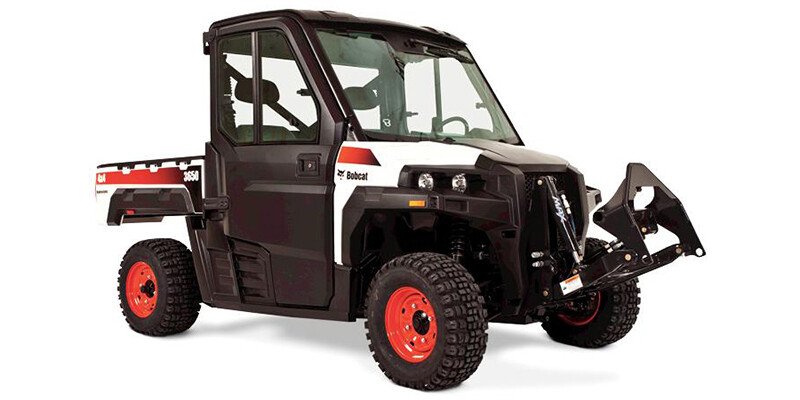

2018 Bobcat 3650 Diesel

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  10
• Fuel Capacity (l)
  38
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  83.8
• Wheelbase (mm)
  2129
• Compression Ratio
  22.8:1
• Cylinders
  3
• Displacement (cc)
  1028
• Engine Brand Name
  Kohler®
• Engine Stroke
  4-Stroke
• Engine Type
  Longitudinal In-Line
• Horsepower (bhp)
  24
• Starter
  Electric
• Valve Configuration
  OHV
• Generic Type (Primary)
  Utility
• Revision Status
  Carryover
• Warranty (Months)
  12
• Number Of Seats
  2
• Tachometer
  Standard
• Front Tire (Full Spec)
  25 x 10 - 12
• Rear Tire (Full Spec)
  25 x 11 - 12
• Number Of Speeds
  2
• Primary Drive (Rear Wheel)
  Shaft
• Transmission Type
  Automatic
• Dry Weight (kg)
  1155
• Dry Weight (lbs)
  2546
