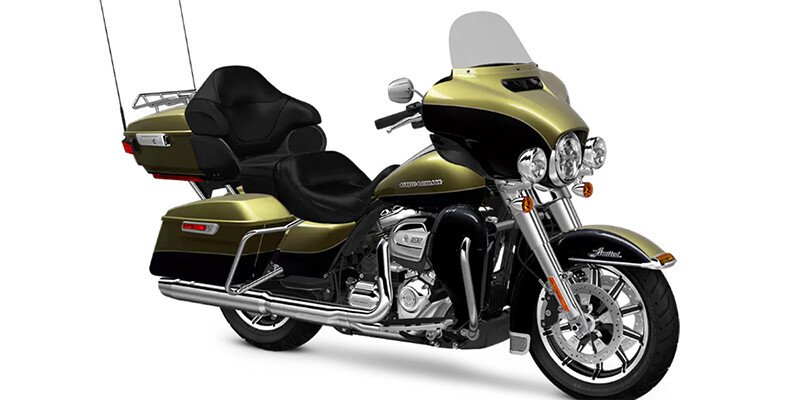

2018 Harley-Davidson Electra Glide Ultra Limited Specifications

Vehicle Specifications

2018 Harley-Davidson Electra Glide Ultra Limited

• Front Brake Type
  Dual Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  6
• Fuel Capacity (l)
  22.7
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  64
• Wheelbase (mm)
  1625
• Compression Ratio
  10.0:1
• Cylinders
  2
• Displacement (cc)
  1753.4
• Engine Brand Name
  Twin-Cooled™ Milwaukee-Eight™ 107
• Engine Stroke
  4-Stroke
• Engine Type
  V Twin
• Starter
  Electric
• Torque (Ft Lbs)
  114
• Valve Configuration
  OHV - Pushrod
• Generic Type (Primary)
  Touring
• Revision Status
  Carryover
• MSRP
  26999
• Warranty (Months)
  24
• Number Of Seats
  2
• Seat Height (in)
  29.1
• Seat Height (mm)
  739.1
• Tachometer
  Standard
• Front Tire (Full Spec)
  Dunlop® Multi-Tread™ 130/80 R17 65H
• Rear Tire (Full Spec)
  Dunlop® Multi-Tread™ 180/65 R16 81H
• Number Of Speeds
  6
• Primary Drive (Rear Wheel)
  Belt
• Transmission Type
  Manual
