2018 150 Specifications

Vehicle Specifications

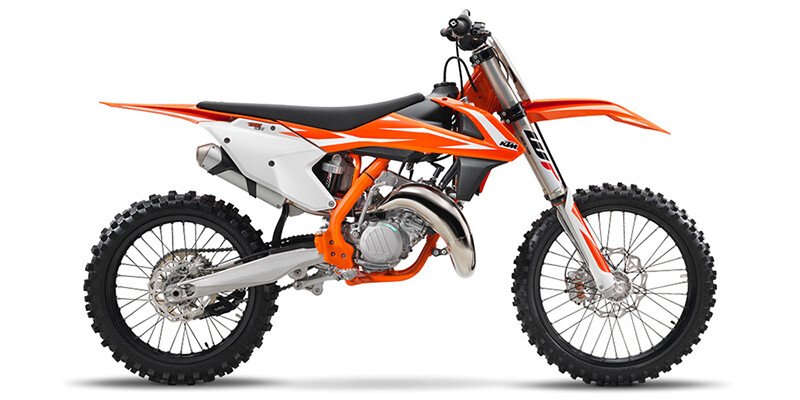

2018 KTM 105SX 150

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  1.9
• Fuel Capacity (l)
  7.2
• Carburetion Type
  Carburetor
• Wheelbase (in)
  58.5
• Wheelbase (mm)
  1485
• Cylinders
  1
• Displacement (cc)
  143.6
• Engine Stroke
  2-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Kick
• Valve Configuration
  Reed Valve
• Generic Type (Primary)
  Off-Road
• Revision Status
  Carryover
• Warranty (Months)
  1
• Number Of Seats
  1
• Seat Height (in)
  37.8
• Seat Height (mm)
  960
• Front Tire (Full Spec)
  Dunlop® GEOMAX MX3S 80/100 R21 51M
• Rear Tire (Full Spec)
  Dunlop® GEOMAX MX3S 100/90 R19 57M
• Number Of Speeds
  6
• Primary Drive (Rear Wheel)
  Chain
• Transmission Type
  Manual
• Dry Weight (kg)
  87.2
• Dry Weight (lbs)
  192.2
• Windshield
  Not Available
