2018 50 Specifications

Vehicle Specifications

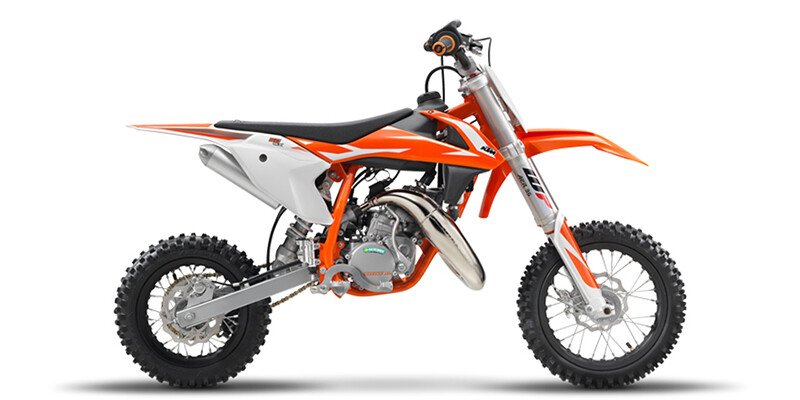

2018 KTM 105SX 50

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  0.6
• Fuel Capacity (l)
  2.3
• Carburetion Type
  Carburetor
• Wheelbase (in)
  40.6
• Wheelbase (mm)
  1032
• Cylinders
  1
• Displacement (cc)
  49
• Engine Stroke
  2-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Kick
• Valve Configuration
  Reed Valve
• Generic Type (Primary)
  Youth
• Revision Status
  Carryover
• Warranty (Months)
  1
• Number Of Seats
  1
• Seat Height (in)
  26.9
• Seat Height (mm)
  684
• Front Tire (Full Spec)
  Maxxis® Maxx Cross SI 2.50 X 12 42J
• Rear Tire (Full Spec)
  Maxxis® Maxx Cross SI 2.75 X 10 38J
• Number Of Speeds
  1
• Primary Drive (Rear Wheel)
  Chain
• Transmission Type
  Automatic
• Dry Weight (kg)
  41.5
• Dry Weight (lbs)
  91.5
• Windshield
  Not Available
