2018 250 Specifications

Spec, Photos, and Model Information

  • Displacement (cc)
    249

Vehicle Specifications

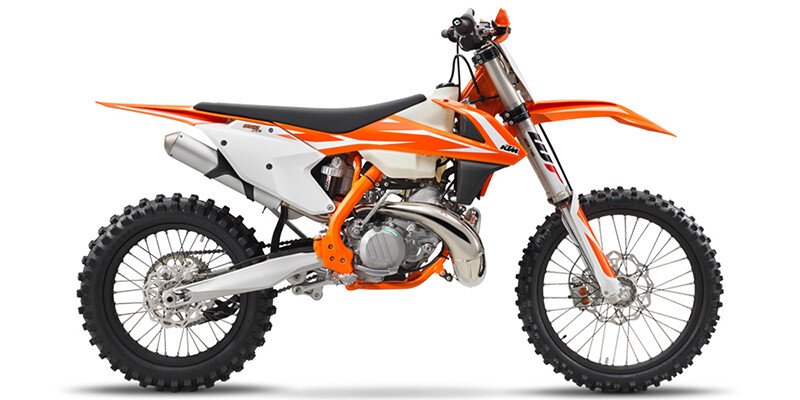

2018 KTM 105XC 250

  • Front Brake Type
    Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
  • Fuel Capacity (gal)
    2.6
  • Fuel Capacity (l)
    10
  • Carburetion Type
    Carburetor
  • Wheelbase (in)
    58.5
  • Wheelbase (mm)
    1485
  • Cylinders
    1
  • Displacement (cc)
    249
  • Engine Stroke
    2-Stroke
  • Engine Type
    Single-Cylinder
  • Starter
    Electric / Kick
  • Valve Configuration
    Reed Valve
  • Generic Type (Primary)
    Off-Road
  • Revision Status
    Carryover
  • Warranty (Months)
    1
  • Number Of Seats
    1
  • Seat Height (in)
    37.8
  • Seat Height (mm)
    960
  • Front Tire (Full Spec)
    DunlopĀ® GEOMAX AT81 80/100 R21
  • Rear Tire (Full Spec)
    DunlopĀ® GEOMAX AT81 110/90 R18
  • Number Of Speeds
    6
  • Primary Drive (Rear Wheel)
    Chain
  • Transmission Type
    Manual
  • Dry Weight (kg)
    100.7
  • Dry Weight (lbs)
    222
  • Windshield
    Not Available
