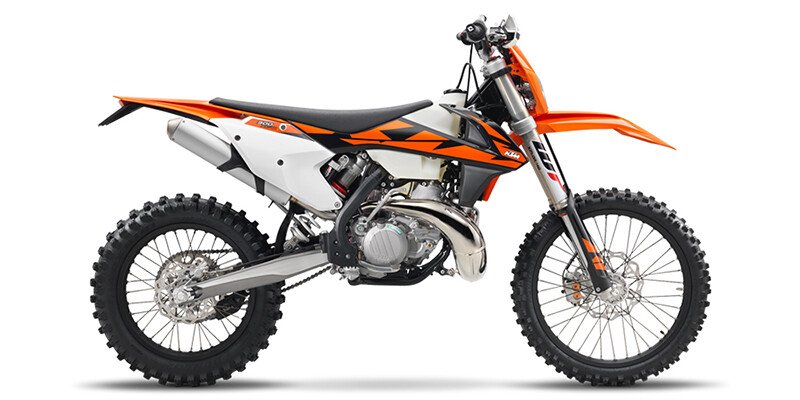

2018 300 W Specifications

Vehicle Specifications

2018 KTM 105XC 300 W

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  2.6
• Fuel Capacity (l)
  10
• Carburetion Type
  Carburetor
• Digital Instrumentation
  Standard
• Wheelbase (in)
  58.4
• Wheelbase (mm)
  1482
• Compression Ratio
  13.2:1
• Cylinders
  1
• Displacement (cc)
  293.2
• Engine Stroke
  2-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Electric / Kick
• Valve Configuration
  Reed Valve
• Generic Type (Primary)
  Off-Road
• Revision Status
  Carryover
• Warranty (Months)
  1
• Number Of Seats
  1
• Seat Height (in)
  37.8
• Seat Height (mm)
  960
• Front Tire (Full Spec)
  Dunlop® 80/100 R21
• Rear Tire (Full Spec)
  Dunlop® 110/100 R18
• Number Of Speeds
  6
• Primary Drive (Rear Wheel)
  Chain
• Transmission Type
  Manual
• Dry Weight (kg)
  100
• Dry Weight (lbs)
  220.5
• Windshield
  Not Available
