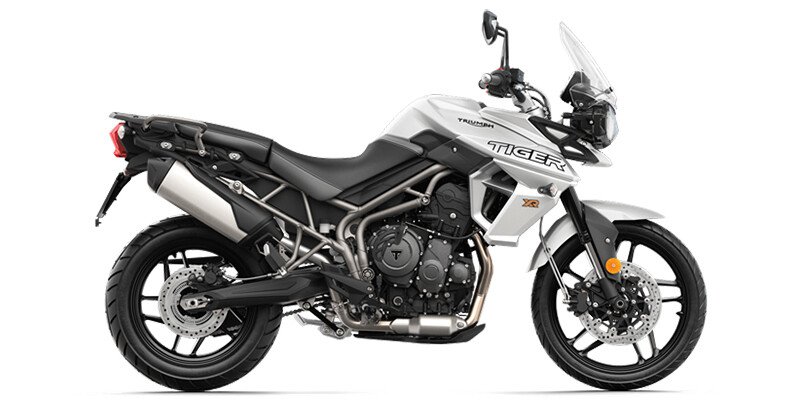

2019 Triumph Tiger 800 XR Specifications

Vehicle Specifications

2019 Triumph Tiger 800 XR

• Front Brake Type
  Dual Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  5
• Fuel Capacity (l)
  19
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  60.2
• Wheelbase (mm)
  1530
• Compression Ratio
  11.3:1
• Cylinders
  3
• Displacement (cc)
  800
• Engine Stroke
  4-Stroke
• Engine Type
  Horizontal In-line
• Horsepower (bhp)
  95
• Starter
  Electric
• Torque (Ft Lbs)
  58
• Valve Configuration
  DOHC
• Generic Type (Primary)
  On-Off Road
• Revision Status
  Carryover
• MSRP
  12000
• Warranty (Months)
  24
• Number Of Seats
  2
• Seat Height (in)
  31.9
• Seat Height (mm)
  810
• Tachometer
  Standard
• Front Tire (Full Spec)
  Metzeler Tourance: 100/90-19
• Rear Tire (Full Spec)
  Metzeler Tourance: 150/70 ZR 17
• Number Of Speeds
  6
• Primary Drive (Rear Wheel)
  Chain
• Transmission Type
  Manual
