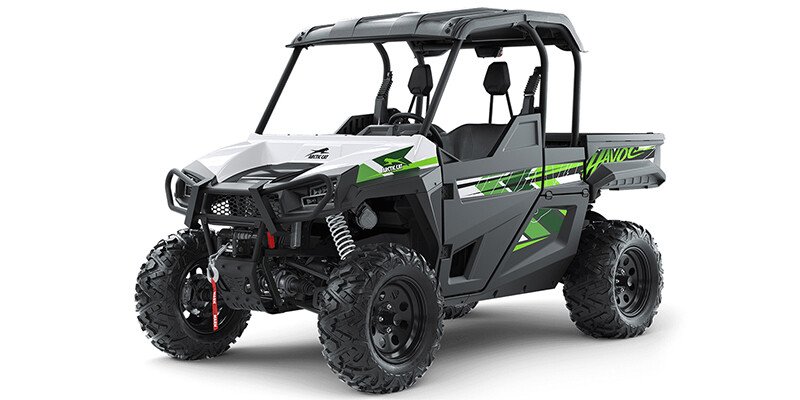

2020 Arctic Cat Havoc Base Specifications

Spec, Photos, and Model Information

  • Displacement (cc)
    957
  • Horsepower (bhp)
    100
  • Torque (Ft Lbs)
    67

Vehicle Specifications

2020 Arctic Cat Havoc Base

  • Front Brake Type
    Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
  • Fuel Capacity (gal)
    9.5
  • Fuel Capacity (l)
    36
  • Carburetion Type
    Fuel Injected
  • Digital Instrumentation
    Standard
  • Wheelbase (in)
    85.2
  • Wheelbase (mm)
    2160
  • Cylinders
    2
  • Displacement (cc)
    957
  • Engine Stroke
    4-Stroke
  • Engine Type
    In-Line
  • Horsepower (bhp)
    100
  • Starter
    Electric
  • Torque (Ft Lbs)
    67
  • Valve Configuration
    SOHC
  • Generic Type (Primary)
    Utility
  • Revision Status
    Upgraded
  • Warranty (Months)
    12
  • Number Of Seats
    2
  • Tachometer
    Standard
  • Front Tire (Full Spec)
    Duro Powergrip 27 X 9-14
  • Rear Tire (Full Spec)
    Duro Powergrip 27 X 11-14
  • Primary Drive (Rear Wheel)
    Shaft
  • Transmission Type
    Continuously Variable (CVT)
  • Dry Weight (kg)
    796.1
  • Dry Weight (lbs)
    1755
