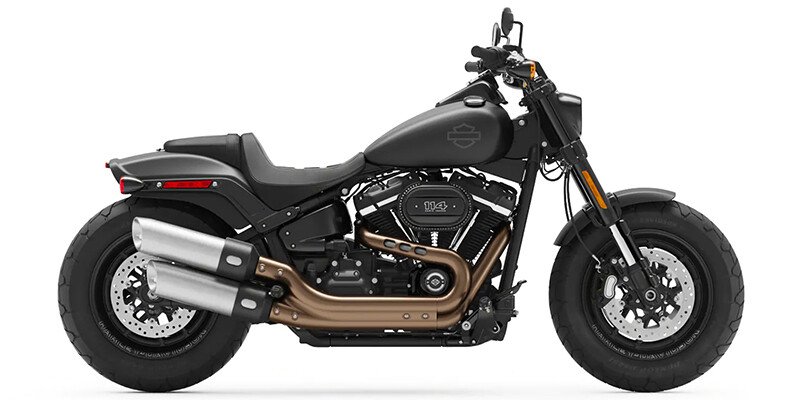

2020 Harley-Davidson Softail Fat Bob 114 Specifications

Spec, Photos, and Model Information

  • Start Price
    $18,799
  • Fuel Economy
    47 MPG Combined

Vehicle Specifications

2020 Harley-Davidson Softail Fat Bob 114

  • Front Brake Type
    Dual Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
  • Fuel Capacity (gal)
    3.6
  • Fuel Capacity (l)
    13.6
  • Carburetion Type
    Fuel Injected
  • Digital Instrumentation
    Standard
  • Wheelbase (in)
    63.6
  • Wheelbase (mm)
    1615
  • Cylinders
    2
  • Displacement (cc)
    1868
  • Engine Stroke
    4-Stroke
  • Engine Type
    V Twin
  • Valve Configuration
    OHV - Pushrod
  • Generic Type (Primary)
    Cruiser
  • Revision Status
    Carryover
  • MSRP
    18799
  • Warranty (Months)
    24
  • Number Of Seats
    2
  • Seat Height (in)
    28
  • Seat Height (mm)
    711.2
  • Tachometer
    Standard
  • Front Tire (Full Spec)
    DunlopĀ® 150/80 R16 71H
  • Rear Tire (Full Spec)
    DunlopĀ® 180/70 R16 77H
  • Number Of Speeds
    6
  • Primary Drive (Rear Wheel)
    Belt
  • Transmission Type
    Manual
  • Dry Weight (kg)
    296.2
  • Dry Weight (lbs)
    653
