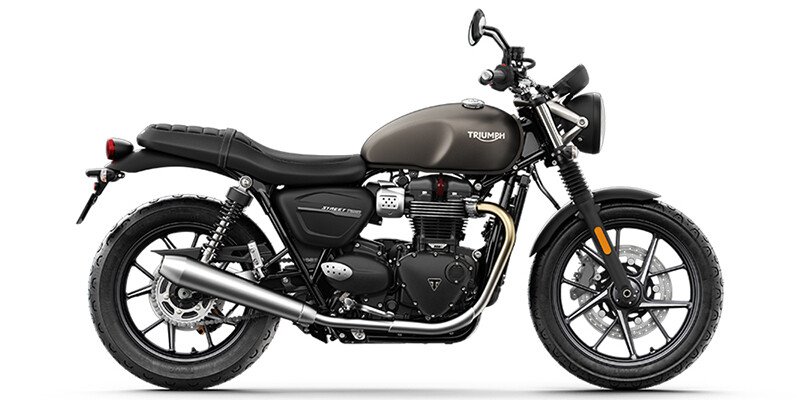

2020 Triumph Street Twin Base Specifications

Spec, Photos, and Model Information

  • Start Price
    $9,300
  • Displacement (cc)
    900
  • Horsepower (bhp)
    65
  • Torque (Ft Lbs)
    59

Vehicle Specifications

2020 Triumph Street Twin Base

  • Front Brake Type
    Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
  • Fuel Capacity (gal)
    3.2
  • Fuel Capacity (l)
    12.1
  • Carburetion Type
    Fuel Injected
  • Digital Instrumentation
    Standard
  • Wheelbase (in)
    55.7
  • Wheelbase (mm)
    1415
  • Compression Ratio
    11.0:1
  • Cylinders
    2
  • Displacement (cc)
    900
  • Engine Stroke
    4-Stroke
  • Engine Type
    Parallel Twin
  • Horsepower (bhp)
    65
  • Starter
    Electric
  • Torque (Ft Lbs)
    59
  • Valve Configuration
    SOHC
  • Generic Type (Primary)
    Standard
  • Revision Status
    Carryover
  • MSRP
    9300
  • Warranty (Months)
    24
  • Number Of Seats
    2
  • Seat Height (in)
    29.9
  • Seat Height (mm)
    760
  • Tachometer
    Standard
  • Front Tire (Full Spec)
    PirelliĀ® Phantom Sportscomp: 100/90-18 56H
  • Rear Tire (Full Spec)
    PirelliĀ® Phantom Sportscomp: 150/70 R17 69H
  • Number Of Speeds
    5
  • Primary Drive (Rear Wheel)
    Chain
  • Transmission Type
    Manual
