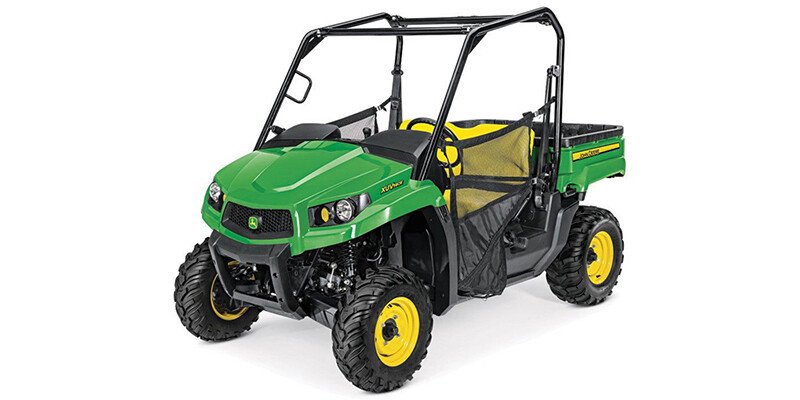

2022 John Deere Gator Base Specifications

Spec, Photos, and Model Information

  • Start Price
    $9,949
  • Displacement (cc)
    570
  • Horsepower (bhp)
    16
  • Torque (Ft Lbs)
    28.6

Vehicle Specifications

2022 John Deere Gator Base

  • Front Brake Type
    Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
  • Fuel Capacity (gal)
    4.9
  • Fuel Capacity (l)
    18.5
  • Carburetion Type
    Carburetor
  • Digital Instrumentation
    Not Available
  • Wheelbase (in)
    72.8
  • Wheelbase (mm)
    1860
  • Cylinders
    2
  • Displacement (cc)
    570
  • Engine Brand Name
    Briggs & Stratton Vanguard
  • Engine Stroke
    4-Stroke
  • Engine Type
    V Twin
  • Horsepower (bhp)
    16
  • Starter
    Electric
  • Torque (Ft Lbs)
    28.6
  • Valve Configuration
    OHV
  • Generic Type (Primary)
    Utility
  • Revision Status
    Carryover
  • MSRP
    9949
  • Warranty (Months)
    12
  • Number Of Seats
    2
  • Tachometer
    Not Available
  • Front Tire (Full Spec)
    Ancla MT: 25 x 8-12
  • Rear Tire (Full Spec)
    Ancla MT: 25 x 10-12
  • Primary Drive (Rear Wheel)
    Shaft
  • Transmission Type
    Continuously Variable (CVT)
