2022 85 17/14 Specifications

Vehicle Specifications

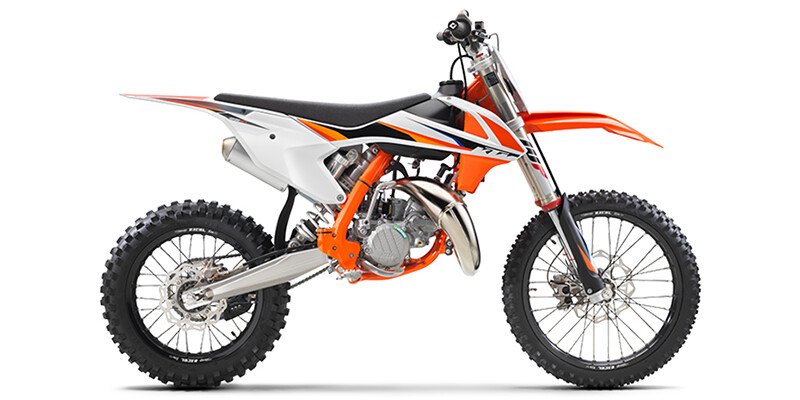

2022 KTM 105SX 85 17/14

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  1.4
• Fuel Capacity (l)
  5.2
• Carburetion Type
  Carburetor
• Wheelbase (in)
  50.8
• Wheelbase (mm)
  1290
• Cylinders
  1
• Displacement (cc)
  84.9
• Engine Stroke
  2-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Kick
• Valve Configuration
  Reed Valve
• Generic Type (Primary)
  Off-Road
• Revision Status
  Carryover
• MSRP
  6399
• Warranty (Months)
  1
• Number Of Seats
  1
• Seat Height (in)
  34.1
• Seat Height (mm)
  865
• Front Tire (Full Spec)
  Maxxis® Maxx Cross SI 70/100 R17 40M
• Rear Tire (Full Spec)
  Maxxis® Maxx Cross SI 90/100 R14 49M
• Number Of Speeds
  6
• Primary Drive (Rear Wheel)
  Chain
• Transmission Type
  Manual
• Dry Weight (kg)
  67
• Dry Weight (lbs)
  147.7
• Windshield
  Not Available
