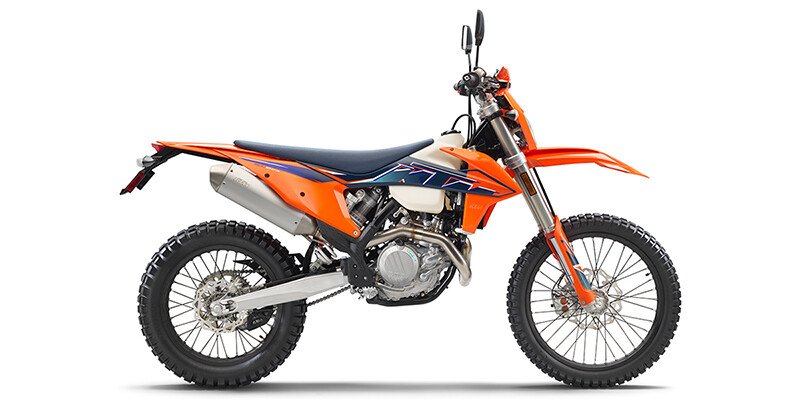

2022 KTM 125EXC 500 F Specifications

Spec, Photos, and Model Information

  • Start Price
    $12,299
  • Displacement (cc)
    510.9

Vehicle Specifications

2022 KTM 125EXC 500 F

  • Front Brake Type
    Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
  • Fuel Capacity (gal)
    2.3
  • Fuel Capacity (l)
    8.5
  • Carburetion Type
    Fuel Injected
  • Digital Instrumentation
    Standard
  • Wheelbase (in)
    58.3
  • Wheelbase (mm)
    1482
  • Compression Ratio
    12.8:1
  • Cylinders
    1
  • Displacement (cc)
    510.9
  • Engine Stroke
    4-Stroke
  • Engine Type
    Single-Cylinder
  • Starter
    Electric
  • Valve Configuration
    SOHC
  • Generic Type (Primary)
    On-Off Road
  • Revision Status
    Carryover
  • MSRP
    12299
  • Warranty (Months)
    6
  • Number Of Seats
    1
  • Seat Height (in)
    37.8
  • Seat Height (mm)
    960
  • Front Tire (Full Spec)
    Continental TKC 80 90/90 R21 54S
  • Rear Tire (Full Spec)
    Continental TKC 80 120/90 R18 65R
  • Number Of Speeds
    6
  • Primary Drive (Rear Wheel)
    Chain
  • Transmission Type
    Manual
  • Dry Weight (kg)
    109
  • Dry Weight (lbs)
    240.3
  • Windshield
    Not Available
