2023 Ranch Edition Specifications

Vehicle Specifications

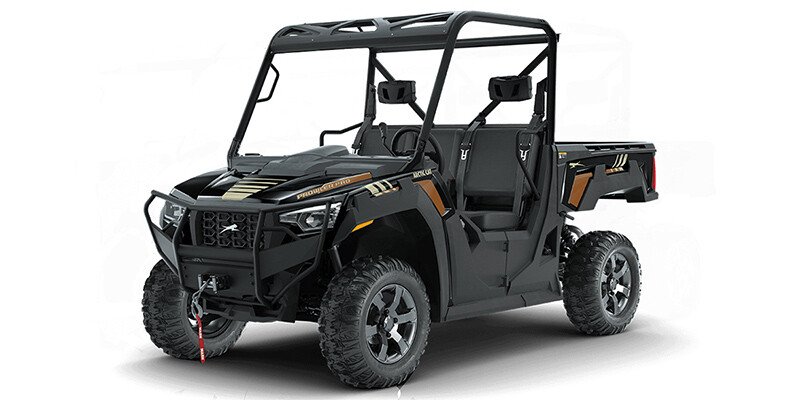

2023 Arctic Cat Prowler 1000 Ranch Edition

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  10
• Fuel Capacity (l)
  37.9
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  85
• Wheelbase (mm)
  2159
• Cylinders
  3
• Displacement (cc)
  812
• Engine Stroke
  4-Stroke
• Engine Type
  In-Line
• Horsepower (bhp)
  50
• Starter
  Electric
• Torque (Ft Lbs)
  48
• Valve Configuration
  DOHC
• Generic Type (Primary)
  Utility
• Revision Status
  Carryover
• MSRP
  16399
• Warranty (Months)
  18
• Number Of Seats
  3
• Seat Height (in)
  32
• Seat Height (mm)
  813
• Tachometer
  Standard
• Front Tire (Full Spec)
  Duro 26 X 9-14
• Rear Tire (Full Spec)
  Duro 26 X 11-14
• Primary Drive (Rear Wheel)
  Shaft
• Transmission Type
  Continuously Variable (CVT)
• Dry Weight (kg)
  718
• Dry Weight (lbs)
  1585
