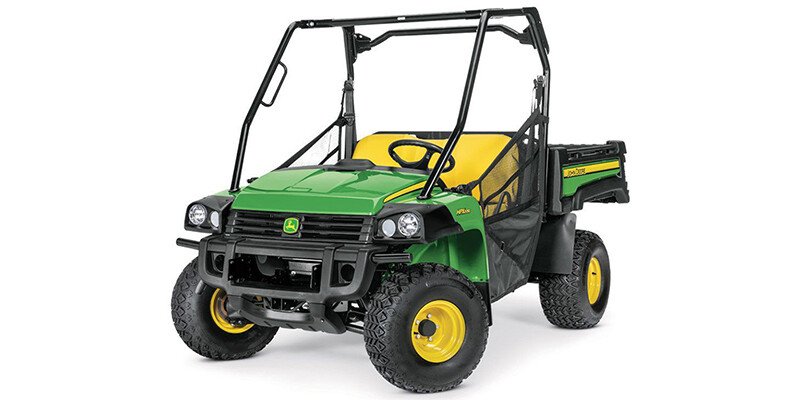

2023 John Deere Gator 815E Specifications

Vehicle Specifications

2023 John Deere Gator 815E

• Front Brake Type
  Dual Hydraulic Disc
• Rear Brake Type
  Dual Hydraulic Disc
• Fuel Capacity (gal)
  5.3
• Fuel Capacity (l)
  20.1
• Carburetion Type
  Carburetor
• Digital Instrumentation
  Not Available
• Wheelbase (in)
  75.2
• Wheelbase (mm)
  1910
• Cylinders
  3
• Displacement (cc)
  854
• Engine Brand Name
  Yanmar
• Engine Stroke
  4-Stroke
• Engine Type
  Horizontal In-line
• Horsepower (bhp)
  18.2
• Starter
  Electric
• Torque (Ft Lbs)
  36.9
• Valve Configuration
  OHV
• Generic Type (Primary)
  Utility
• Revision Status
  Carryover
• MSRP
  15229
• Warranty (Months)
  12
• Number Of Seats
  2
• Tachometer
  Not Available
• Front Tire (Full Spec)
  24 x 9.5 - 10
• Rear Tire (Full Spec)
  24 x 12 - 10
• Transmission Type
  Continuously Variable (CVT)
• Dry Weight (kg)
  692
• Dry Weight (lbs)
  1525.6
