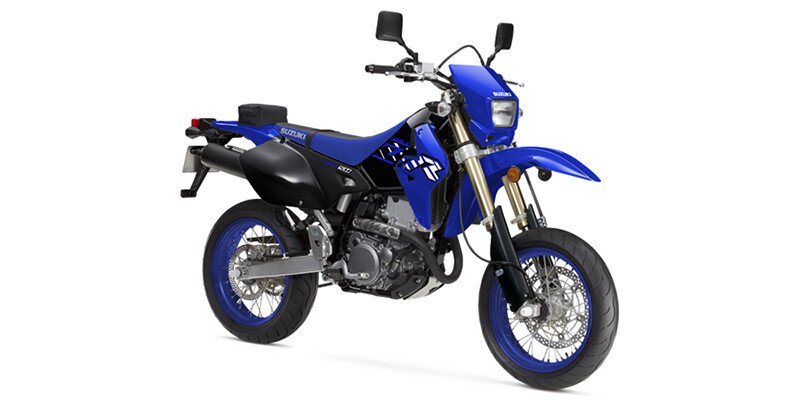

2023 Suzuki DR-Z400SM Base Specifications

Vehicle Specifications

2023 Suzuki DR-Z400Sm Base

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  2.6
• Fuel Capacity (l)
  10
• Carburetion Type
  Carburetor
• Digital Instrumentation
  Standard
• Wheelbase (in)
  57.5
• Wheelbase (mm)
  1460
• Compression Ratio
  11.3:1
• Cylinders
  1
• Displacement (cc)
  398
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Electric
• Valve Configuration
  DOHC
• Generic Type (Primary)
  On-Off Road
• Revision Status
  Carryover
• MSRP
  7749
• Warranty (Months)
  12
• Number Of Seats
  2
• Seat Height (in)
  35
• Seat Height (mm)
  890
• Tachometer
  Not Available
• Front Tire (Full Spec)
  Dunlop® 120/70 R17 M/C 58H
• Rear Tire (Full Spec)
  Dunlop® 140/70 R17 M/C 66H
• Number Of Speeds
  5
• Primary Drive (Rear Wheel)
  Chain
• Transmission Type
  Manual
• Windshield
  Not Available
