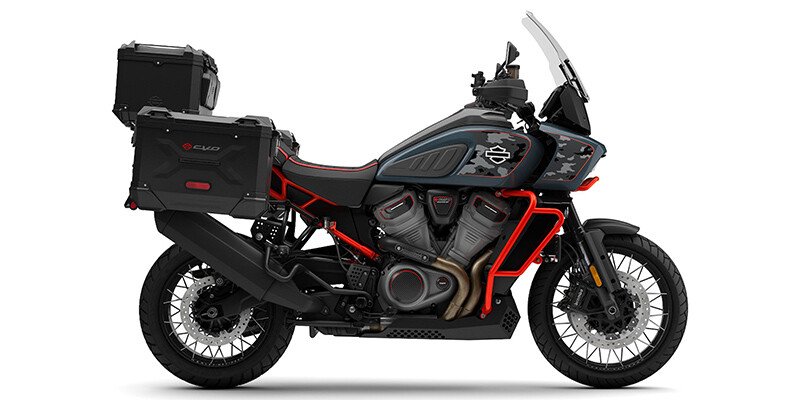

2025 Harley-Davidson Pan America CVO Specifications

Vehicle Specifications

2025 Harley-Davidson Pan America CVO

• Front Brake Type
  Dual Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  5.6
• Fuel Capacity (l)
  21.2
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  62.4
• Wheelbase (mm)
  1585
• Compression Ratio
  13:1
• Cylinders
  2
• Displacement (cc)
  1252
• Engine Brand Name
  Revolution® Max
• Engine Stroke
  4-Stroke
• Engine Type
  V Twin
• Horsepower (bhp)
  150
• Starter
  Electric
• Torque (Ft Lbs)
  95
• Valve Configuration
  DOHC
• Generic Type (Primary)
  On-Off Road
• Revision Status
  Carryover
• MSRP
  29249
• Warranty (Months)
  24
• Number Of Seats
  2
• Seat Height (in)
  32.7
• Seat Height (mm)
  830
• Tachometer
  Standard
• Front Tire (Full Spec)
  Michelin® Scorcher™ Adventure 120/70 R19 60V
• Rear Tire (Full Spec)
  Michelin® Scorcher™ Adventure 170/60 R17 72V
• Number Of Speeds
  6
• Primary Drive (Rear Wheel)
  Chain
