2025 230 SM ABS Specifications

Vehicle Specifications

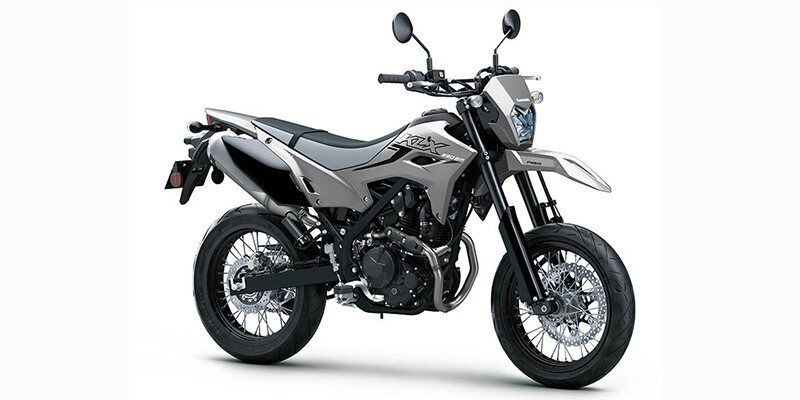

2025 Kawasaki KLX110 230 SM ABS

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  2
• Fuel Capacity (l)
  7.6
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  53.7
• Wheelbase (mm)
  1364
• Compression Ratio
  9.4:1
• Cylinders
  1
• Displacement (cc)
  233
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Electric
• Torque (Ft Lbs)
  13
• Valve Configuration
  SOHC
• Generic Type (Primary)
  On-Off Road
• Revision Status
  Carryover
• MSRP
  5599
• Warranty (Months)
  6
• Number Of Seats
  2
• Seat Height (in)
  33.1
• Seat Height (mm)
  841
• Tachometer
  Standard
• Front Tire (Full Spec)
  IRC RX-01 Road Winner: 110/70-17
• Rear Tire (Full Spec)
  IRC RX-01 Road Winner: 120/70-17
• Number Of Speeds
  6
• Primary Drive (Rear Wheel)
  Chain
• Transmission Type
  Manual
• Dry Weight (kg)
  129
