2025 125 Specifications

Vehicle Specifications

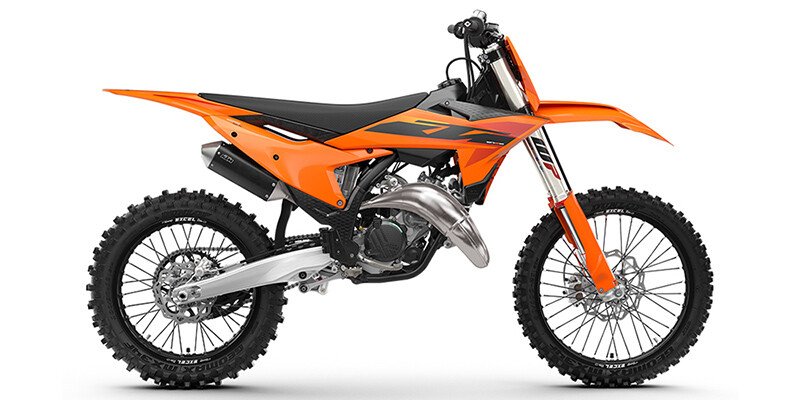

2025 KTM 105SX 125

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  1.9
• Fuel Capacity (l)
  7.2
• Carburetion Type
  Fuel Injected
• Wheelbase (in)
  58.8
• Wheelbase (mm)
  1493
• Cylinders
  1
• Displacement (cc)
  124.8
• Engine Stroke
  2-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Electric
• Valve Configuration
  Reed Valve
• Generic Type (Primary)
  Off-Road
• Revision Status
  Carryover
• MSRP
  8199
• Warranty (Months)
  1
• Number Of Seats
  1
• Seat Height (in)
  37.7
• Seat Height (mm)
  958
• Front Tire (Full Spec)
  Dunlop® GEOMAX MX34 80/100 R21 51M
• Rear Tire (Full Spec)
  Dunlop® GEOMAX MX34 100/90 R19 57M
• Number Of Speeds
  6
• Primary Drive (Rear Wheel)
  Chain
• Transmission Type
  Manual
• Dry Weight (kg)
  92.4
• Dry Weight (lbs)
  203.7
• Windshield
  Not Available
