2025 125 Specifications

Vehicle Specifications

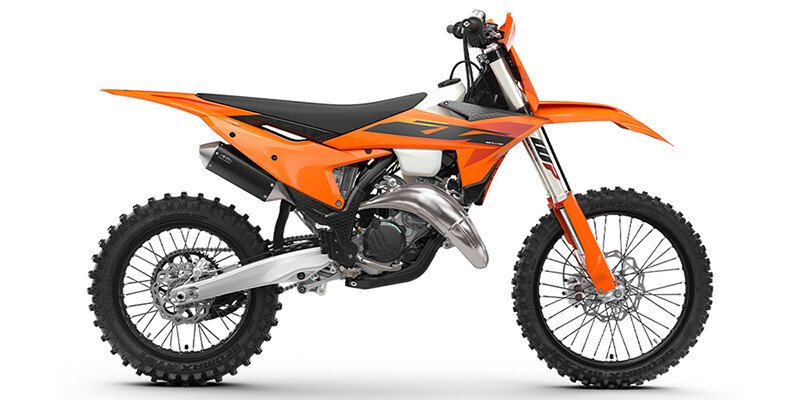

2025 KTM 105XC 125

• Front Brake Type
  Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  2.4
• Fuel Capacity (l)
  9
• Carburetion Type
  Fuel Injected
• Wheelbase (in)
  58.8
• Wheelbase (mm)
  1493
• Cylinders
  1
• Displacement (cc)
  124.8
• Engine Stroke
  2-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Electric
• Valve Configuration
  Reed Valve
• Generic Type (Primary)
  Off-Road
• Revision Status
  Carryover
• MSRP
  8499
• Warranty (Months)
  1
• Number Of Seats
  1
• Seat Height (in)
  37.6
• Seat Height (mm)
  954
• Front Tire (Full Spec)
  Dunlop® GEOMAX MX-33F Tires
• Rear Tire (Full Spec)
  Dunlop® GEOMAX AT81 Tires
• Number Of Speeds
  6
• Primary Drive (Rear Wheel)
  Chain
• Transmission Type
  Manual
• Dry Weight (kg)
  94.8
• Dry Weight (lbs)
  209
• Windshield
  Not Available
