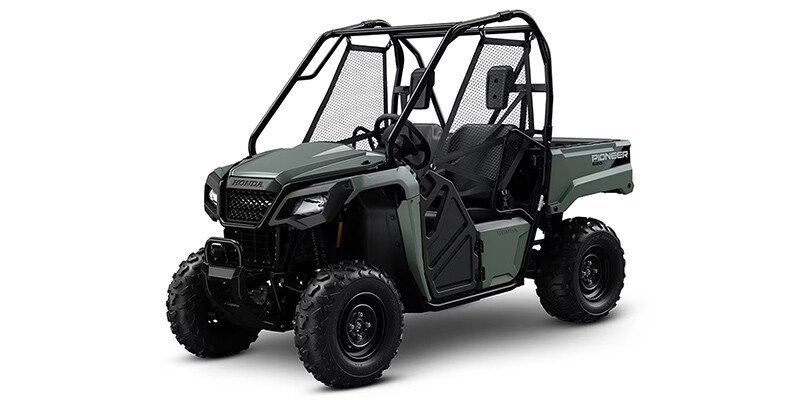

2027 Honda Pioneer 520 Base Specifications

Vehicle Specifications

2027 Honda Pioneer 520 Base

• Front Brake Type
  Dual Hydraulic Disc
• Rear Brake Type
  Hydraulic Disc
• Fuel Capacity (gal)
  4.1
• Fuel Capacity (l)
  15.5
• Carburetion Type
  Fuel Injected
• Digital Instrumentation
  Standard
• Wheelbase (in)
  73
• Wheelbase (mm)
  1854.2
• Compression Ratio
  9.5:1
• Cylinders
  1
• Displacement (cc)
  518
• Engine Stroke
  4-Stroke
• Engine Type
  Single-Cylinder
• Starter
  Electric
• Valve Configuration
  OHV
• Generic Type (Primary)
  Utility
• Revision Status
  Carryover
• Warranty (Months)
  12
• Number Of Seats
  2
• Seat Height (in)
  27.7
• Seat Height (mm)
  703.6
• Tachometer
  Not Available
• Front Tire (Full Spec)
  Maxxis® 24 x 8-12
• Rear Tire (Full Spec)
  Maxxis® 24 x 10-12
• Number Of Speeds
  5
• Primary Drive (Rear Wheel)
  Shaft
• Transmission Type
  Manual / Automatic Clutch
