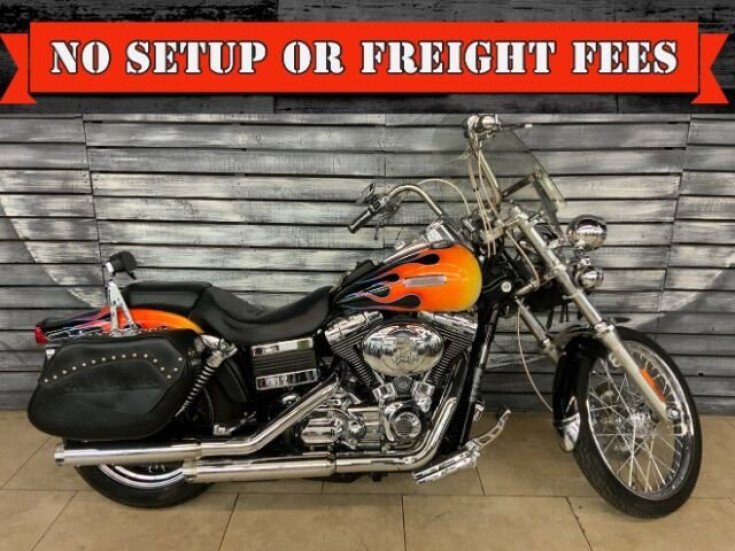

2006 Harley-Davidson Dyna

Engine and transmission

Displacement1442.2 ccm (88.00 cubic inches)

Engine typeV2, four-stroke

Engine detailsVibration-isolated twin Cam 88 pushrod-operated, overhead valves with hydraulic, self-adjusting lifters

Torque115.3 Nm (11.8 kgf-m or 85.0 ft.lbs) @ 3000 RPM

Compression8.9:1

Bore x stroke95.3 x 101.6 mm (3.8 x 4.0 inches)

Fuel systemInjection. ESPFI

Fuel controlOverhead Valves (OHV)

Cooling systemAir

Gearbox6-speed

Transmission typeBelt (final drive)

ClutchWet multi-plate

Fuel consumption5.00 litres/100 km (20.0 km/l or 47.04 mpg)

Greenhouse gases116.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Exhaust systemChrome, staggered shorty duals

Chassis, suspension, brakes and wheels

Frame typeTubular

Rake (fork angle)34.0

Trail130 mm (5.1 inches)

Front suspension49 mm w/polished aluminum fork triple clamp and dual-rate springs

Front wheel travel127 mm (5.0 inches)

Rear suspensionCoil-over shock

Rear wheel travel104 mm (4.1 inches)

Front tireMH90-21

Rear tire160/70-B17

Front brakesSingle disc. 4-piston

Diameter300 mm (11.8 inches)

Rear brakesSingle disc. 4-piston

Diameter295 mm (11.6 inches)

Physical measures and capacities

Dry weight294.8 kg (650.0 pounds)

Weight incl. oil, gas, etc307.5 kg (678.0 pounds)

Overall length2477 mm (97.5 inches)

Ground clearance157 mm (6.2 inches)

Wheelbase1735 mm (68.3 inches)

Fuel capacity19.30 litres (5.10 US gallons)

Oil capacity2.80 litres (2.96 US quarts)

Other specifications

Color optionsVivid black, brilliant silver, black cherry, black pearl, chopper blue, deep cobalt, glacier white pearl, yellow pearl, brandy wine sunglo, two-tone rich sunglo blue and chopper blue, two-tone black cherry and black pearl, two-tone fire red pearl and vivi

StarterElectric

CommentsBlack powder-coated engine with chrome covers. Wide, raked-out front fork. 21 in. laced front wheel. Ape-hanger handlebar internally wired. New bobtail fender.
