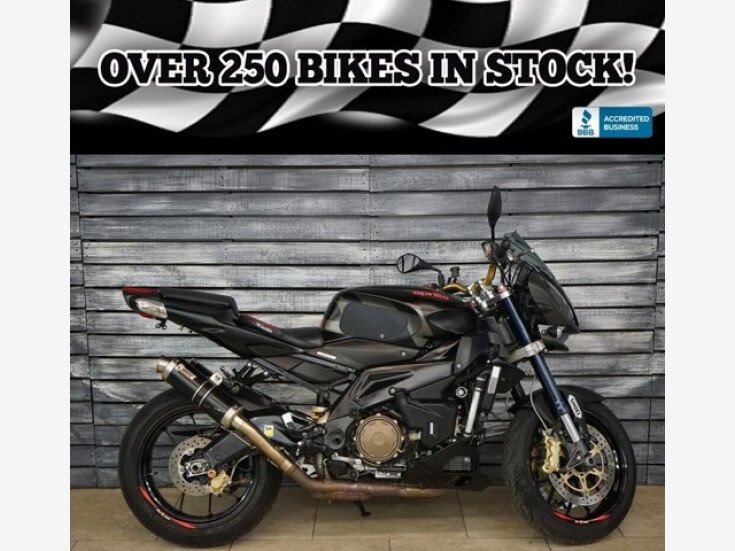

2010 Aprilia Tuono

Engine and transmission

Displacement997.6 ccm (60.87 cubic inches)

Engine typeV2, four-stroke

Power136.8 HP (99.8 kW)) @ 9500 RPM

Torque107.0 Nm (10.9 kgf-m or 78.9 ft.lbs)

Compression11.8:1

Bore x stroke97.0 x 67.5 mm (3.8 x 2.7 inches)

Valves per cylinder4

Fuel systemInjection. Integrated electronic engine management system. Indirect multi-point electronic injection. 57 mm diameter throttle bodies.

IgnitionDigital electronic ignition, integrated with the injection control system. One spark plug per cylinder.

Lubrication systemDry sump with separate oil reservoir. Double trochoid pump with oil cooler. Steel oil reservoir

Cooling systemOil & air

Gearbox6-speed

Transmission typeChain (final drive)

ClutchMultiple disc in oil bath with patented PPC power-assisted hydraulic control. Metal braid clutch line. Radial master cylinder with 15 mm piston.

Exhaust systemTwo silencers with three way catalytic converter and lambda probe oxygen sensor (Euro 3).

Chassis, suspension, brakes and wheels

Rake (fork angle)25.0

Trail104 mm (4.1 inches)

Front suspensionShowa 43 mm upside-down fork with adjustment for spring preload, compression and rebound damping.

Rear suspensionAluminium alloy double banana swingarm. APS (Aprilia Progressive System) rising rate linkages. Sachs hydraulic monoshock with adjustment for spring preload and rebound damping.

Front tire120/70-17.

Rear tire190/50-17

Front brakesDouble disc

Diameter320 mm (12.6 inches)

Rear brakesSingle disc

Diameter220 mm (8.7 inches)

Physical measures and capacities

Dry weight185.0 kg (407.9 pounds)

Power/weight ratio0.7394 HP/kg

Seat height810 mm (31.9 inches) If adjustable, lowest setting.

Overall height1100 mm (43.3 inches)

Overall length2025 mm (79.7 inches)

Overall width830 mm (32.7 inches)

Wheelbase1410 mm (55.5 inches)

Fuel capacity18.00 litres (4.76 US gallons)

Other specifications

Color optionsWhite, blue, black
