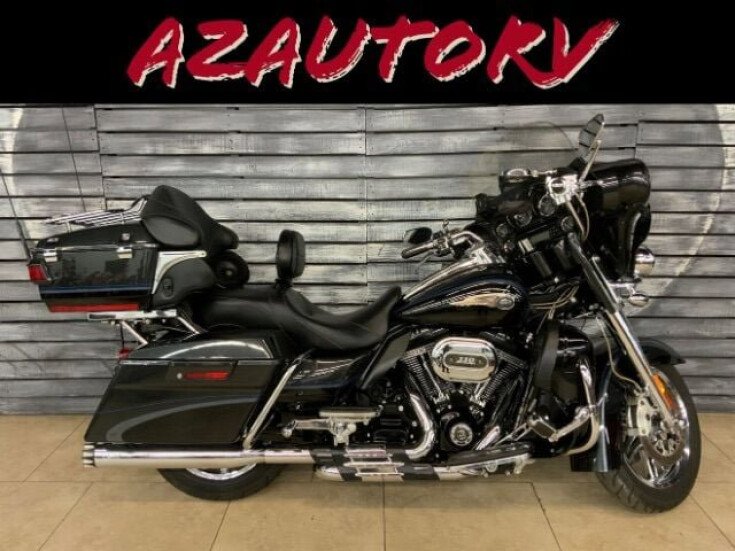

2013 Harley-Davidson CVO

Engine and transmission

Displacement1802.7 ccm (110.00 cubic inches)

Engine typeV2, four-stroke

Engine detailsAir-cooled, Twin Cam 110

Torque160.0 Nm (16.3 kgf-m or 118.0 ft.lbs) @ 3750 RPM

Compression9.2:1

Bore x stroke101.6 x 111.3 mm (4.0 x 4.4 inches)

Fuel systemInjection. Electronic Sequential Port Fuel Injection (ESPFI)

Lubrication systemDry-sump

Cooling systemAir

Gearbox6-speed

Transmission typeBelt (final drive)

DrivelineChain, 34/46 ratio primary drive

Fuel consumption5.74 litres/100 km (17.4 km/l or 40.98 mpg)

Greenhouse gases133.2 CO2 g/km. (CO2 - Carbon dioxide emission)

Exhaust systemChrome dual exhaust with 4 in. touring mufflers and touring muffler shields

Chassis, suspension, brakes and wheels

Rake (fork angle)26.0

Trail170 mm (6.7 inches)

Front tire130/80-B17

Rear tire180/65-B16

Front brakesDouble disc

Rear brakesSingle disc

WheelsMirror Chrome Chisel Custom Wheels

Physical measures and capacities

Dry weight406.9 kg (897.0 pounds)

Weight incl. oil, gas, etc430.0 kg (948.0 pounds)

Seat height706 mm (27.8 inches) If adjustable, lowest setting.

Overall length2535 mm (99.8 inches)

Ground clearance124 mm (4.9 inches)

Wheelbase1626 mm (64.0 inches)

Fuel capacity22.71 litres (6.00 US gallons)

Oil capacity3.80 litres (4.02 US quarts)

Other specifications

Color optionsAnniversary Vintage Bronze/Anniversary Vintage Black

InstrumentsRoad Tech zumo 660 with integrated dash pad mount

LightHigh beam, neutral, running lights, turn signals, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system, 6-speed, low fuel warning, ABS

Carrying capacitySaddle bags. Top box.

CommentsWith windshield. Special Edition celebrating HD s 110th Anniversary. CVO is HD s Custom Vehicle Operation.
