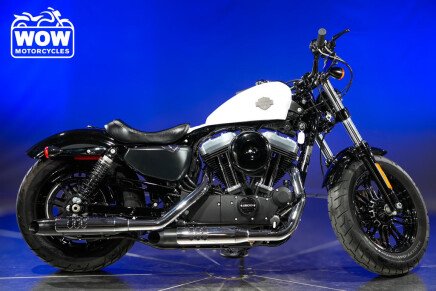

2017 Harley-Davidson Sportster Forty-Eight

Heavy-hitting fat tire style with an iconic peanut tank and bulldog stance. The Forty-Eight features fat tires on a skinny bike with an iconic peanut tank that made its debut in 1948. Designed with signature bulldog stance and 1200cc of torque, this Harley-Davidson Sportster model delivers classic cruiser attitude with modern performance, perfect for urban cruising and making a bold statement on the road. DIMENSIONS Length: 85.2 in. (2,165 mm) Overall Width: 32.9 in. (835 mm) Overall Height: 43.3 in. (1,100 mm) Seat Height, Laden: 26.2 in. (665 mm) Seat Height, Unladen: 28 in. (710 mm) Static Ground Clearance: 4.3 in. (110 mm) Rake (steering head) (deg): 30.2 Fork Angle (deg): 28.7 Trail: 5.3 in. (135 mm) Wheelbase: 58.9 in. (1,495 mm) Tires, Type: Michelin Scorcher 31? front and rear Tires, Front Model: Scorcher 31? Tires, Front Specification: 130/90B16 73H Tires, Rear Model: Scorcher 31? Tires, Rear Specification: 150/80B16 77H Fuel Capacity: 2.1 gal. (7.9 l) Reserve Fuel Capacity, Fuel Injection (warning light): 0.65 gal. (2.5 l) Oil Capacity (w/filter): 2.8 qt. (2.6 l) Transmission Capacity: 1 qt. (1 l) Weight, As Shipped: 545 lb. (247 kg) Weight, In Running Order: 556 lb. (252 kg) Gross Vehicle Weight Rating: 1,000 lb. (454 kg) Gross Axle Weight Rating, Front: 335 lb. (152 kg) Gross Axle Weight Rating, Rear: 665 lb. (302 kg) Luggage Capacity -Volume: N/A ENGINE Engine: Air-cooled, Evolution Valves: Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder Bore: 3.5 in. (88.9 mm) Stroke: 3.8 in. (96.8 mm) Displacement: 73.4 cu in (1,200 cc) Compression Ratio: 10:1 Fuel System: Electronic Sequential Port Fuel Injection (ESPFI) Air Cleaner: Paper cartridge type Exhaust: Black, staggered exhaust with slash-cut mufflers Lubrication System: Dry-sump DRIVETRAIN Primary Drive: Chain, 38/57 ratio Final Drive: Belt, 29/68 ratio Clutch: Multi-plate, wet Transmission: 5-speed
