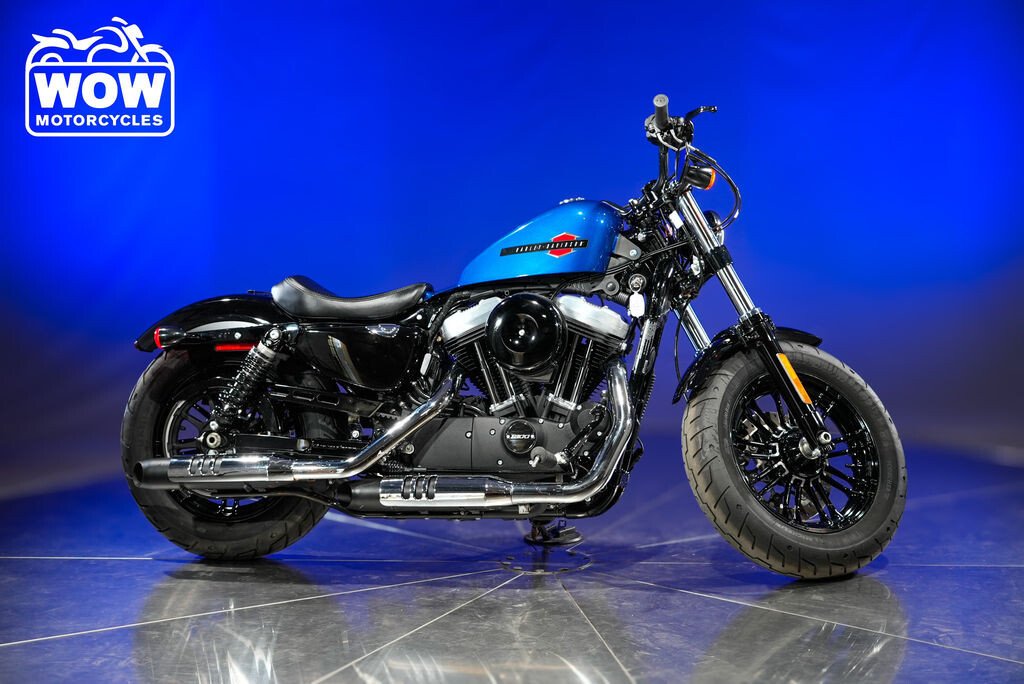

2022 Harley-Davidson Sportster Forty-Eight

Heavy-hitting fat tire style with an iconic peanut tank and bulldog stance. A powerful stance, smooth ride and sharp handling. 1200cc Air-Cooled Evolution V-Twin engine. An iconic V-Twin engine that is renowned for its massive low-end torque and soul-satisfying sound. Lightweight aluminum heads and cylinders improve air-cooling efficiency. Dimensions Length 85.2 in. (2165 mm) Overall Width 32.7 in. (831 mm) Overall Height 42.3 in. (1075 mm) Seat Height: - Laden2 26.2 in. (665 mm) - Unladen 28.0 in. (710 mm) Ground Clearance 4.3 in. (110 mm) Rake (steering head) 30.2 Fork Angle 30.2 Trail 5.3 in. (135 mm) Wheelbase 58.9 in. (1495 mm) Tires (Michelin Scorcher 31? front and rear): - Front Scorcher 31? 130/90B16 73H - Rear Scorcher 31? 150/80B16 77H Fuel Capacity 2.1 gal. (7.9 L) Oil Capacity (w/filter) 2.8 qt. (2.6 L) Transmission Capacity 1.0 qt. (.95 L) Weight As Shipped 545 lb. (247 kg) Weight In Running Order 556 lb. (252 kg) Gross Vehicle Weight Rating 1000 lb. (454 kg) Gross Axle Weight Rating Front 335 lb. (152 kg) Rear 665 lb. (302 kg) Engine Air-cooled, Evolution Bore 3.5 in. (88.9 mm) Stroke 3.8 in. (96.8 mm) Displacement 73.4 cu in (1202 cc) Compression Ratio 10:01 Fuel System Electronic Sequential Port Fuel Injection (ESPFI) Exhaust Black, staggered, shorty exhaust with dual mufflers Transmission 5-speed Primary Drive Chain, 38/57 ratio Final Drive Belt, 29/68 ratio Clutch Multi-plate, wet Brakes Caliper Type Dual-piston front, Dual-piston rear Rotor Type (diameter x width): Front and Rear Solid, uniform expansion rotors Wheels, Front and Rear Type Black, Split 9-Spoke Cast Aluminum w/ Machined Highlights Suspension Travel Front Wheel 3.6 in. (92 mm) Rear Wheel 1.6 in. (41 mm) Engine Torque (J1349) 73 ft-lb (99 Nm) @ 3500 RPM Horsepower 66 HP / 49 kW @ 6000 rpm Lean Angle (per J1168) Right 27 Left 27 Fuel Economy (EPA urban/highway combined) 48 mpg (4.9 L/100 km) Battery Sealed, maintenance-free, 12V, 12 amp/hour, 200 cca Charging Three-phase, 30 amp system (405W @ 13.5V, 2000 RPM, 486W max power @ 13.5V) Starting 1.2 kW electric with solenoid shift starter motor engagement Lights (as per country regulation) Headlamp 55-watt low beam, 60-watt high beam Tail/Stop Lights 8W/28W Turn Signal Lights 28W/12W self-canceling Indicator Lamps High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (if equipped), ABS (if equipped) Gauges Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights
