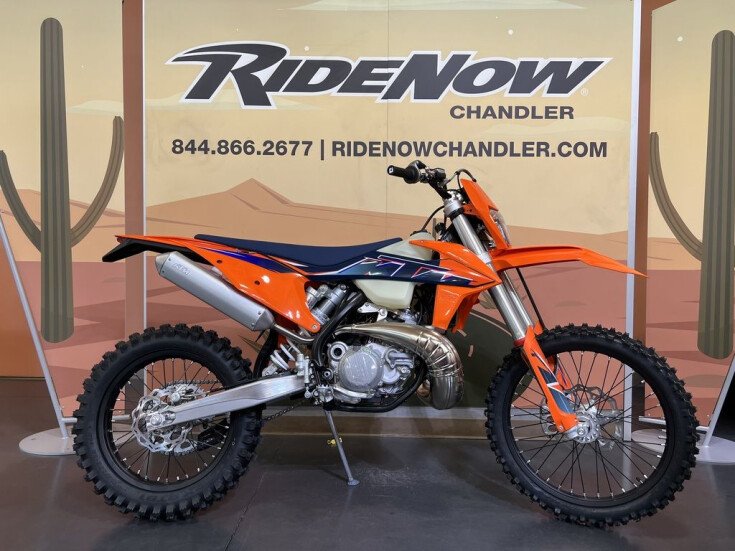

New 2022 KTM 250XC-W

The KTM 250 XC-W TPI is the ultimate combination of power and rideability and sets a clear benchmark for intuitive handling, unique style and top performance. Thanks to its groundbreaking TPI technology, this extreme machine continues to reach new heights, clearly demonstrating KTMs unrelenting commitment to 2-stroke development. Besides the renowned benefits of excellent fuel efficiency, clean exhaust emissions and the removed need for jetting, the KTM 250 XC-W TPI features a dynamic, lightweight frame. It was developed with feedback from factory riders and in hindsight, returns the favor by offering excellent rider feedback.

Features may include:

• Engine

The 250cc 2-stroke engine has plenty of power and torque but remains light enough for riders to muscle their way through the toughest obstacles. Thanks to state-of-the-art engineering, innovative 2-stroke design, and revolutionary TPI fuel injection technology, and a 13:52 re-gear, the powerplant is even more refined than ever before. The compact and lightweight 2-stroke is a great choice for offroad riders who want usable enduro performance that is ready to conquer in the most extreme terrain.

• Frame

All XC-W models feature new high-tech, lightweight chromoly steel frames. This includes hydro-formed elements produced by state-of-the-art robot welding. They retain their race-proven geometries, but by re-designing certain areas, the stiffness has been optimized, resulting in better feedback for the rider, playful handling and improved stability. The laterally attached engine head stays (the connection between cylinder, head and frame) are now made of aluminum, reducing vibration and further contributing to precise cornering. The bikes also feature newly designed lateral frame guards with a structured surface, improving grip, while also serving as a heat protector against the muffler on the right side. On the KTM 250 XC-W TPI frame, the engine is lowered by 1° around the swing arm pivot improving front wheel traction significantly. The subframe is made of extra-light and stable aluminum profiles, weighing less than 2 lbs (900 gr) and is 40 mm longer than before, providing better rear fender stability.

• Handlebar

All KTM XC-W models are equipped with the same high-strength aluminum tapered handlebar, made by NEKEN. The handlebar allows for four different positions. The handlebars come standard with an ODI vulcanized grip on the right side and a comfortable ODI lock-on grip, which does not require any wire or glue, on the left. Additionally, all models can be equipped with an optional handlebar map select switch, which allows to select between a standard and advanced power curve.

• Decals

The durable in-mold graphics convey the READY TO RACE character of the KTM XC-W model line.

• Battery & wiring harness

All engines are fitted with the proven electric starter, which is a major benefit for any offroad activity. It is powered by a super lightweight 2 ah lithium-ion starter battery which provides safe, reliable starting. A reworked wiring harness and revised packaging has most of the electrical components concentrated into a common area below the seat, making them more accessible and reliable.
