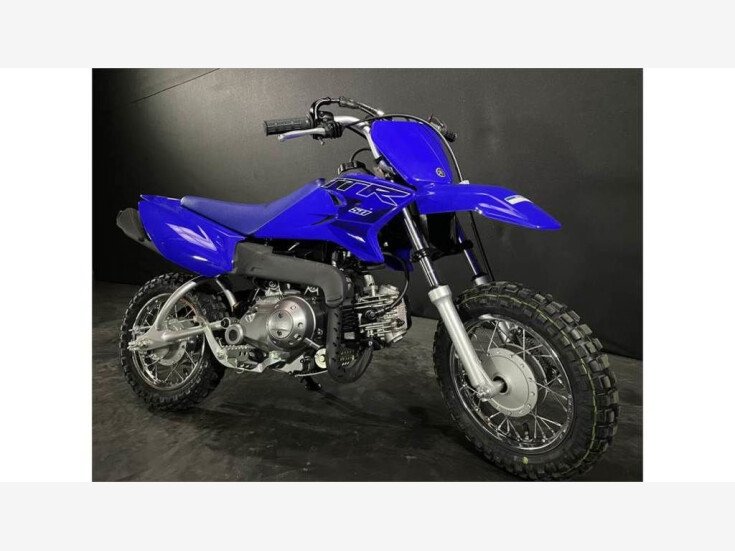

New 2022 Yamaha TT-R50E

The Fun Starts Here

The push-button electric start, three-speed automatic transmission and adjustable speed restrictor make this the ideal bike to teach the thrill of riding.

TOP FEATURES

Convenient Electric Start: Convenient push-button electric start feature for effortless engine startup.

Accessible Performance: Great for learning and playing, the TT-R50E features a fun, 49cc four-stroke engine feeding power through a three-speed automatic-clutch transmission.

Ultra-Low Seat Height: With a seat thats only 21.9 inches from the dirt, this bike brings big YZ styling to those with smaller statures.

Advanced Suspension: Inverted fork and Monocross® rear end provide great handling.

Robust Final Drive: Large chain cover for maximum protection and minimal maintenance.

ENGINE FEATURES

Useable, Entry-Level Engine: 49cc air-cooled SOHC powerplant puts out smooth, reliable four-stroke power that is perfect for kids and smaller beginners.

Automatic Clutch: Three-speed gearbox with automatic centrifugal clutch makes learning to shift gears a breeze.

Convenient Electric Start: Convenient push-button electric start feature for effortless engine startup.

Compact Engine: Compact design keeps overall engine width down for a narrow feel and great handling.

Responsive Power: Crisp, dependable throttle response from the 11mm Mikuni® VM-type carburetor with automatic on/off electric heater.

Low Maintenance Engine: Automatic cam chain tensioner reduces maintenance.

Digital Ignition: CDI ignition system delivers hot, reliable spark and requires minimal maintenance.

Forest-Friendly Exhaust: Lightweight, upswept exhaust system is quiet and contains a USFS-approved spark arrestor.

CHASSIS/SUSPENSION FEATURES

Simple and Strong Frame: The curved steel backbone frame keeps the TT-R50E narrow and has three engine-mounting points for excellent rigidity and handling.

Compact Inverted Fork: Inverted fork with 22mm sliders provides 3.8 inches of front wheel travel for great handling and a smooth ride.

Lightweight Single Shock: Monocross® rear suspension is controlled by a single coil-over shock and provides 2.8 inches of bump-smothering rear wheel travel.

Enclosed Drum Brakes: Front and rear 80mm drum brakes deliver strong, dependable stopping power, and the rear is activated by a right foot pedal just like the big YZs.

Durable Knobby Tires: Durable knobby tires mounted on 10-inch front and rear wheels offer great grip and exceptional wear.

Ultra-Low Seat Height: Low 21.9-inch seat height allows easy feet-down control for enhanced confidence.

ADDITIONAL FEATURES

Standard Security: Key-type ignition switch deters unauthorized riding.

Adjustable Restrictor: Throttle stop screw lets the adult supervisor restrict speed while beginners are learning.

Racing Style: Cool-looking YZ bodywork includes an integrated front fender and number plate.

Folding Side Stand: Standard side stand tucks up out of the way when not in use.

Grippy Foot Pegs: Large folding, cleated foot pegs provide excellent footing.

ENGINE

Engine Type: 49cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke: 36.0mm x 48.6mm
Compression Ratio: 9.5:1
Fuel Delivery: Mikuni® VM11 carburetor
Ignition: CDI
Transmission: Constant-mesh 3-speed; automatic clutch
Final Drive: Chain

CHASSIS

Suspension / Front: Telescopic fork; 3.8 in. travel
Suspension / Rear: Single shock; 2.8 in. travel
Brakes / Front: Drum, 80mm
Brakes / Rear: Drum, 80mm
Tires / Front: 2.50-10-4PR
Tires / Rear: 2.50-10-4PR

DIMENSIONS

L x W x H: 51.4 in. x 23.4 in. x 31.3 in.
Seat Height: 21.9 in.
Wheelbase: 36.4 in.
Rake (Caster Angle): 25.5 deg.
Trail: 1.3 in.
Maximum Ground Clearance: 5.3 in.
Fuel Capacity: 0.8 gal.
Fuel Economy: n/a
Wet Weight: 128 lb.

OTHER

Warranty: 90 Day (Limited Factory Warranty)
