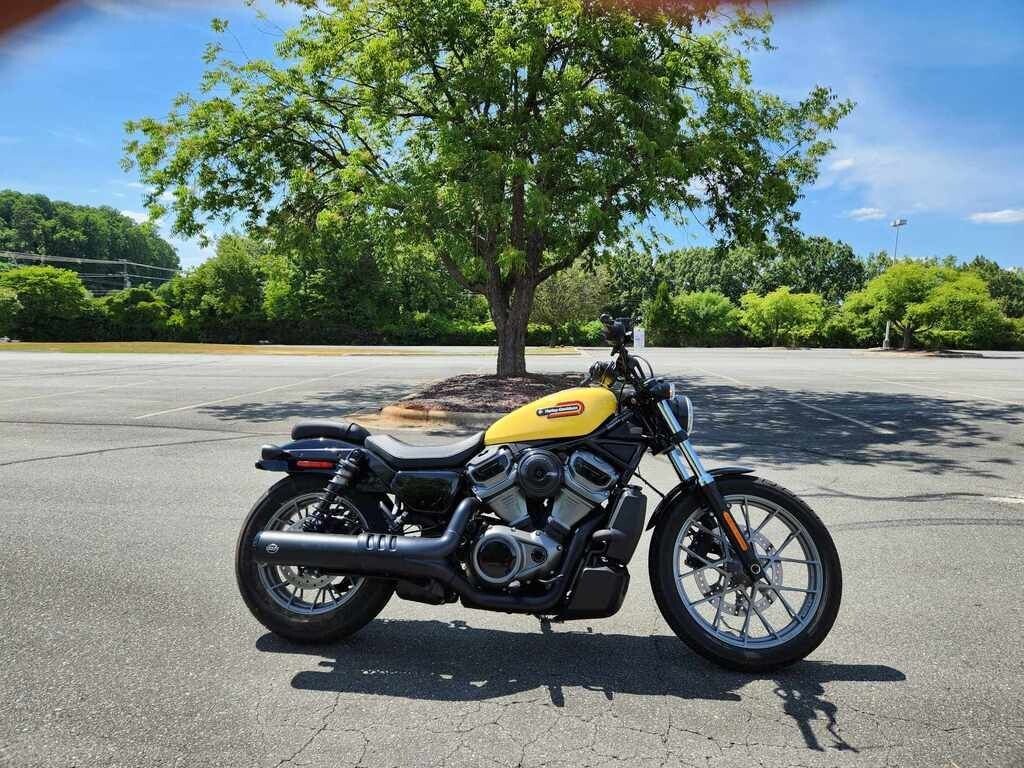

2023 Harley-Davidson Sportster Nightster Special
Vehicle Specifications
- VIN1HD1ZF111PB310028
- Motorcycle ID201667186
- Stock NumberU310028
- CategoryMotorcycle
- SubcategoryStreet
- TypeSport Bike
- New/UsedUsed
- Mileage443 miles
- Exterior ColorYELLOW / BLACK
- Heated Seats?No
- Saddlebags?No
- Cruise Control?No
- Antilock Brakes?No
Motorcycle Overview
LEAN AND MEAN PERFORMANCE 01 LIQUID COOLED REVOLUTION MAX 975 Performance when you need it, the Revolution Max 975 engine is a liquid-cooled V-Twin tuned to make tremendous torque at low RPM, delivering strong acceleration from the start with robust power through the mid-range. 02 FRAME Nightster does not use a traditional hoop-style frame. Instead, the powertrain is used as a stressed member significantly reducing weight and resulting in a very stiff chassis. Each component has been designed to be compact, strong, and lightweight.
Length 87 in. (2,210 mm)
Seat Height, Laden 27.1 in. (688 mm)
Seat Height, Unladen 27.8 in. (705 mm)
Rake 30
Trai 5.4 in. (137 mm)
Wheelbas 61.3 in. (1,556 mm)
Tires, Front Specificatio 100/90-19 57H
Tires, Rear Specificatio 150/80B16 77H
Fuel Capacity 3.1 gal. (11.7 l)
Oil Capacity 4.75 qt. (4.5 l)
Weight, As Shipped 465 lb. (211 kg)
Weight, In Running Order 483 lb. (219 kg)
Engine Revolution Max 975T
Bore 3.82 in. (97 mm)
Stroke 2.6 in. (66 mm)
Displacement 59.5 cu in (975 cc)
Compression Ratio 12:01
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust 2-into-1; catalyst in header
Primary Drive Gear, 49/89 ratio
Gear Ratios(overall) 1st 12.21
Gear Ratios(overall) 2nd 9.022
Gear Ratios(overall) 3rd 6.994
Gear Ratios(overall) 4th 5.641
Gear Ratios(overall) 5th 4.731
Gear Ratios(overall) 6th 4.131
Wheels, Front Type Aluminum cast, silver
Wheels, Rear Type Aluminum cast, silver
Brakes, Caliper Type Front: axially mounted, 4-piston caliper; Rear: floating, single piston caliper
Engine Torque Testing Method J1349
Engine Torque 70 ft-lb (95 Nm)
Engine Torque(rpm) 5000
Lean Angle, Right(deg.) 32
Lean Angle, Left(deg.) 32
Fuel Economy Testing Method Estimated City/Hwy
Fuel Economy 52 mpg (4.5 l/100 km)
Type Color TFT
Headset Specifications(if equipped) Bluetooth
Languages Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese
Hands-free Mobile Phone - via Bluetooth Standard
Voice Recognition Languages: Phone functions only Phone dependent
Voice Recognition Languages: Tuner/Media/Navigation Phone dependent
Rider/Passenger Intercom Headset function only
Vehicle Information Screen(Air temperature, oil pressure and EITMS) TPMS, Engine temp, Battery Voltage, Ambient Air Temp
Text-to-Speech(TTS) Languages Phone dependent
USB Charging and Instrument update, USB-C, 5V, 3A
Bluetooth Phone/Media Supported
Length 87 in. (2,210 mm)
Seat Height, Laden 27.1 in. (688 mm)
Seat Height, Unladen 27.8 in. (705 mm)
Rake 30
Trai 5.4 in. (137 mm)
Wheelbas 61.3 in. (1,556 mm)
Tires, Front Specificatio 100/90-19 57H
Tires, Rear Specificatio 150/80B16 77H
Fuel Capacity 3.1 gal. (11.7 l)
Oil Capacity 4.75 qt. (4.5 l)
Weight, As Shipped 465 lb. (211 kg)
Weight, In Running Order 483 lb. (219 kg)
Engine Revolution Max 975T
Bore 3.82 in. (97 mm)
Stroke 2.6 in. (66 mm)
Displacement 59.5 cu in (975 cc)
Compression Ratio 12:01
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust 2-into-1; catalyst in header
Primary Drive Gear, 49/89 ratio
Gear Ratios(overall) 1st 12.21
Gear Ratios(overall) 2nd 9.022
Gear Ratios(overall) 3rd 6.994
Gear Ratios(overall) 4th 5.641
Gear Ratios(overall) 5th 4.731
Gear Ratios(overall) 6th 4.131
Wheels, Front Type Aluminum cast, silver
Wheels, Rear Type Aluminum cast, silver
Brakes, Caliper Type Front: axially mounted, 4-piston caliper; Rear: floating, single piston caliper
Engine Torque Testing Method J1349
Engine Torque 70 ft-lb (95 Nm)
Engine Torque(rpm) 5000
Lean Angle, Right(deg.) 32
Lean Angle, Left(deg.) 32
Fuel Economy Testing Method Estimated City/Hwy
Fuel Economy 52 mpg (4.5 l/100 km)
Type Color TFT
Headset Specifications(if equipped) Bluetooth
Languages Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese
Hands-free Mobile Phone - via Bluetooth Standard
Voice Recognition Languages: Phone functions only Phone dependent
Voice Recognition Languages: Tuner/Media/Navigation Phone dependent
Rider/Passenger Intercom Headset function only
Vehicle Information Screen(Air temperature, oil pressure and EITMS) TPMS, Engine temp, Battery Voltage, Ambient Air Temp
Text-to-Speech(TTS) Languages Phone dependent
USB Charging and Instrument update, USB-C, 5V, 3A
Bluetooth Phone/Media Supported
