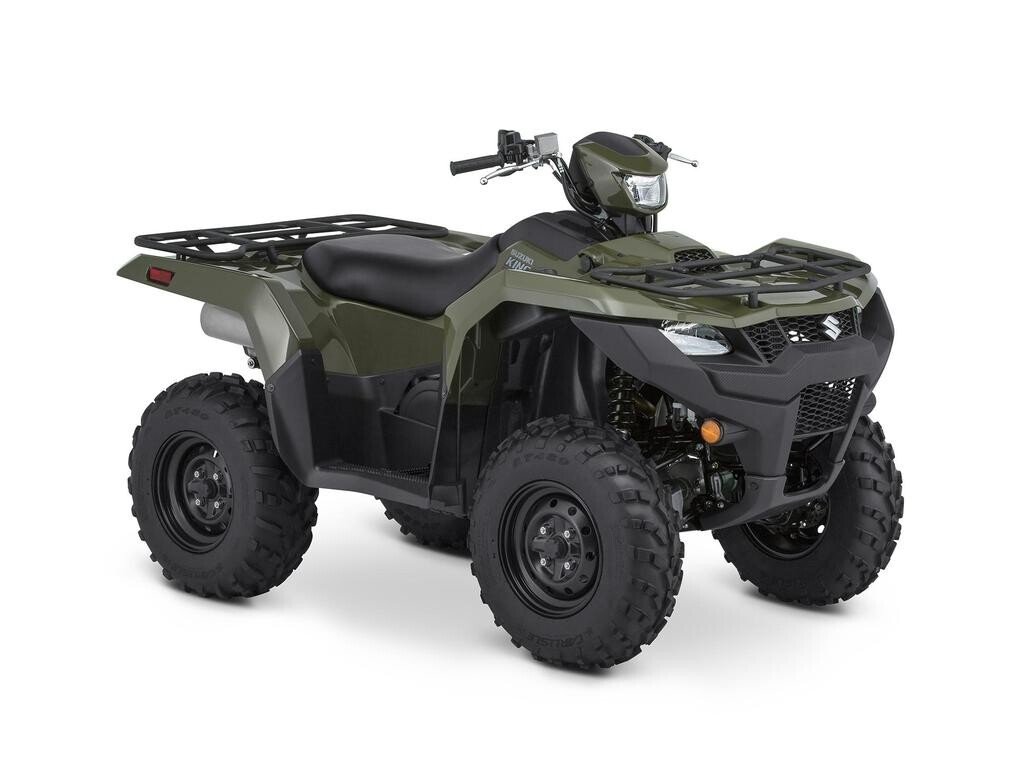

2023 Suzuki KingQuad 500 AXi

2023 Suzuki KingQuad 500AXi

2023 Suzuki KingQuad 500AXi is a proven, do-it-all ATV built for dependable trail performance and real-world utilityand this one is available now at MotoMember in Purcellville, Virginia. Finished in a sharp Green and showing just 166 miles, its an excellent option for riders who want a capable 4x4 machine without paying new-ATV pricing.

The KingQuad 500AXi sits in Suzukis legendary KingQuad lineup as a balanced middleweight: strong, manageable power, confident handling, and the kind of durability riders trust for property work, hunting land, and weekend trail rides. With electronic fuel injection, a CVT with high/low range, and shaft drive, its designed to start easily, pull smoothly, and keep maintenance straightforward.

Key Features

- 493cc liquid-cooled, 4-stroke OHC single-cylinder with 4-valve head for responsive, usable power
- Suzuki electronic fuel injection (EFI) for consistent starts and clean throttle response across changing conditions
- CVT (V-belt) transmission with high/low range and reverse for trail control and work-ready gearing
- Selectable 4WD capability for added traction when terrain turns slick or uneven
- Shaft final drive for durable, low-hassle power delivery
- Independent double wishbone suspension (front & rear) with coil springs and gas-charged, oil-damped shocks for a planted ride
- Twin front disc brakes for confident stopping power
- Sealed oil-bathed multi-disc rear brake designed for consistent braking in messy conditions

Specifications

- Engine: 493cc (30.1 cu. in.), 4-stroke, liquid-cooled, 4-valve, OHC single cylinder
- Bore x Stroke: 87.5 mm x 82.0 mm (3.40 in. x 3.20 in.)
- Compression Ratio: 9.9:1
- Fuel System: Suzuki electronic fuel injection
- Starter: Suzuki electric starter
- Ignition: Electronic ignition (CDI)
- Transmission: CVT (V-belt) with high-/low-range and reverse
- Final Drive: Shaft drive
- Drive: 4WD
- Front Suspension: Independent double wishbone, coil spring, oil damped, gas charged
- Rear Suspension: Independent double wishbone, coil spring, oil damped, gas charged
- Front Brakes: Twin disc
- Rear Brakes: Sealed oil-bathed multi-disc
- Front Tires: AT25 x 8-12, tubeless
- Rear Tires: AT25 x 10-12, tubeless
- Wheelbase: 1285 mm (50.6 in.)
- Seat Height: 920 mm (36.2 in.)
- Fuel Tank: 17.5 L (4.6 US gal)
- Curb Mass: 315 kg (695 lb)
- Dimensions (L x W): 2150 mm (84.6 in.) x 1215 mm (47.8 in.)

Why Youll Love It

The EFI-equipped 493cc engine delivers smooth, controllable performance that feels right at home on tight trails and open property alike. Independent suspension front and rear helps keep the ride composed over ruts and rocks, while the CVT with high/low range makes it easy to crawl when you need precision or cruise when the trail opens up. Add in shaft drive and a sealed rear brake design, and youve got an ATV built to handle real use with confidence.

Visit or Call MotoMember

See this 2023 Suzuki KingQuad 500AXi at MotoMember, located at 405 Browning Ct, Purcellville, VA 20132. Call 703 552-9988 to check availability, ask about financing options, or schedule a time to see it in person. For more on Suzuki ATV engineering and the KingQuad lineup, visit https://suzukicycles.com/.
