New 2026 Honda FourTrax Foreman Rubicon

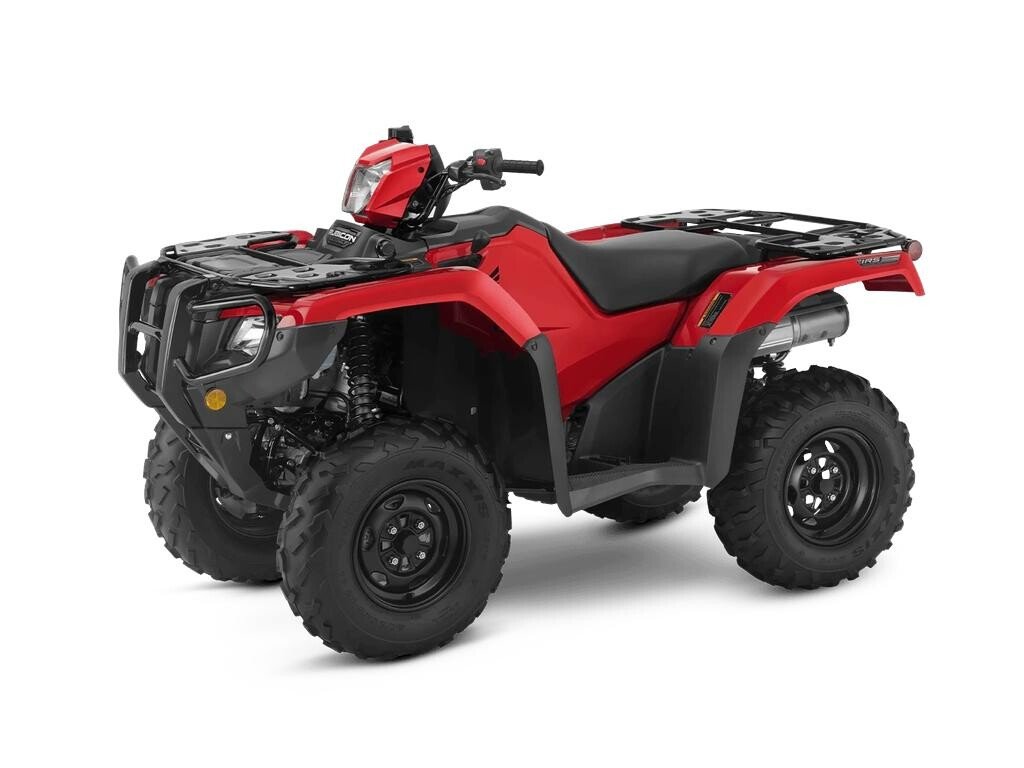

2026 Honda FourTrax Foreman Rubicon 4x4 Automatic DCT EPS

2026 Honda FourTrax Foreman Rubicon 4x4 Automatic DCT EPS is a legendary utility ATV built for serious work and confident trail riding, and its available now at MotoMember in Manassas, Virginia. Finished in bold Red, this Rubicon pairs Honda durability with modern convenienceautomatic DCT shifting, Electric Power Steering (EPS), and true 4x4 capability for year-round property, farm, and backwoods use.

Designed for riders who want a tough, dependable machine without giving up comfort or control, the Foreman Rubicon is a go-to choice for hauling, towing, and navigating rough terrain. Its longitudinally mounted 518cc engine delivers tractable low-end power, while the torque-sensitive locking front differential helps you keep moving when conditions get slick, rocky, or rutted. Whether youre maintaining land, heading to camp, or tackling weekend chores, this Honda is built to show up and get it done.

Key Features

- 518cc liquid-cooled single-cylinder four-stroke for strong, usable torque and proven Honda reliability
- PGM-FI fuel injection (36mm throttle body) for crisp starts and consistent performance across changing temps and elevations
- Five-speed automatic Dual-Clutch Transmission (DCT) with reverse for smooth, efficient shifting and reduced rider fatigue
- Direct front and rear driveshafts for durable, low-maintenance power delivery
- Torque-sensitive locking front differential to maximize traction when the trail (or jobsite) gets demanding
- Independent suspension front and rear for improved ride comfort and control over uneven ground
- Dual front disc brakes + rear disc brake for confident stopping power
- Utility-ready racks and towing with impressive capacity for real-world work
- Electric start with optional auxiliary recoil for added peace of mind

Specifications

- Engine: 518cc liquid-cooled longitudinally mounted single-cylinder four-stroke
- Bore x Stroke: 96.0mm x 71.5mm
- Compression Ratio: 9.5:1
- Valve Train: OHV; two valves per cylinder
- Fuel System: Programmed Fuel Injection (PGM-FI); 36mm throttle body
- Starter: Electric (optional auxiliary recoil)
- Transmission: Five-speed automatic Dual-Clutch Transmission (DCT) with reverse
- Clutch: Automatic
- Driveline: Direct front and rear driveshafts with torque-sensitive locking front differential
- Front Suspension: Independent double-wishbone; 7.3-inch travel
- Rear Suspension: Independent dual-arm; 8.5-inch travel
- Front Brakes: Dual 190mm discs
- Rear Brake: 170mm disc
- Front Tires: 25 x 8-12
- Rear Tires: 25 x 10-12
- Turning Radius: 11.5 ft
- Towing Capacity: 1322 lb
- Front Rack Capacity: 99 lb
- Rear Rack Capacity: 187 lb
- Fuel Capacity: 3.9 gal (including 1.3-gal reserve)
- Ground Clearance: 9.7 in
- Seat Height: 36.3 in
- Wheelbase: 50.9 in
- Dimensions (L x W x H): 86.0 in x 47.4 in x 48.7 in
- Curb Weight: 725 lb (includes all standard equipment, required fluids and a full tank of fuel)
- Model ID: TRX520FA6
- Emissions: Meets current EPA off-road emissions standards
- Warranty: Transferable, one-year included limited warranty (extended coverage available with HondaCare)

Real-World Benefits

The Rubicons independent suspension and 9.7 inches of ground clearance help it stay composed over washouts, rocks, and uneven fields, while the DCT automatic transmission reduces fatigue during long workdays or slow technical riding. With 1322 pounds of towing capacity plus generous rack ratings (99 lb front / 187 lb rear), its ready for trailers, tools, feed, firewood, and gearwithout feeling like youre pushing the machine beyond its comfort zone.

Visit MotoMember in Manassas

See this 2026 Honda FourTrax Foreman Rubicon 4x4 Automatic DCT EPS in person at MotoMember, 9105 Mathis Ave, Manassas, VA 20110. Call 703 361-2233 to confirm availability, ask about accessories, or explore protection options. For more on Honda ATV engineering and lineup details, visit https://powersports.honda.com/.

Important Safety Information: Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owners manual thoroughly.
