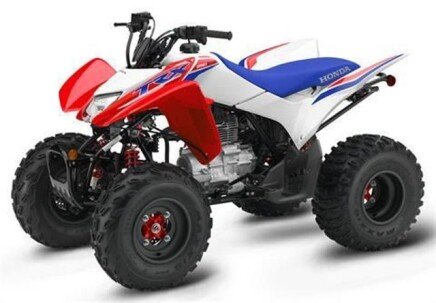

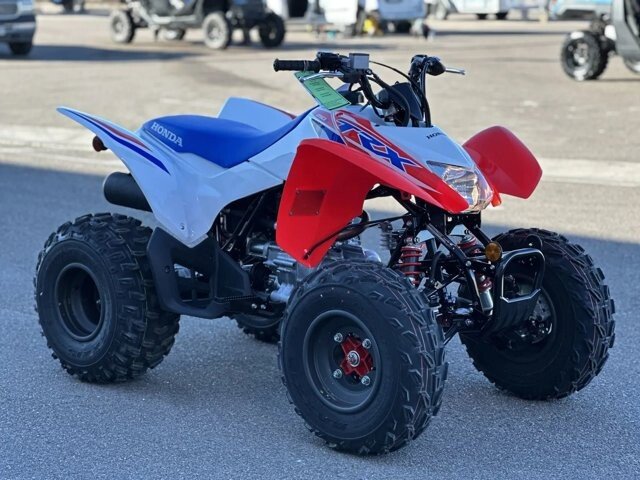

New 2026 Honda TRX250X

Key specifications

According to Honda Powersports and other retailers, the 2026 Honda TRX250X has the following specifications:

2026 Honda TRX250X

Color

Red

Engine

229cc air-cooled, OHV, longitudinally mounted, single-cylinder four-stroke

Transmission

Five-speed with reverse; Honda SportClutch

Final Drive

Direct rear driveshaft

Front Suspension

Independent double-wishbone; 5.9-inch travel

Rear Suspension

Swingarm with single shock; 5.7-inch travel

Front Brakes

Dual 174mm discs

Rear Brake

Sealed 140mm drum

Curb Weight

385 pounds

Seat Height

31.4 inches

Features and design

The 2026 TRX250X is built for performance and comfort on the trails.

1. Engine: The 229cc air-cooled engine is rubber-mounted to reduce vibration and provide broad, easy-to-use power with minimal maintenance.
2. Chassis: The lightweight, double-cradle steel chassis is designed for durability and a smooth ride over varied terrain.
3. Tires and Wheels: Lightweight aluminum wheels are fitted with Maxxis Razr tires for optimal traction.
4. Convenience: Standard features include an electric starter for easy starts and a keyed ignition for security. A reverse gear makes maneuvering in tight spots simple.
5. Suspension: The suspension system provides a smooth, controlled ride with 5.9 inches of travel in the front and 5.7 inches in the rear.
6. Brakes: It has dual hydraulic disc brakes in the front and a maintenance-free sealed rear drum brake.
