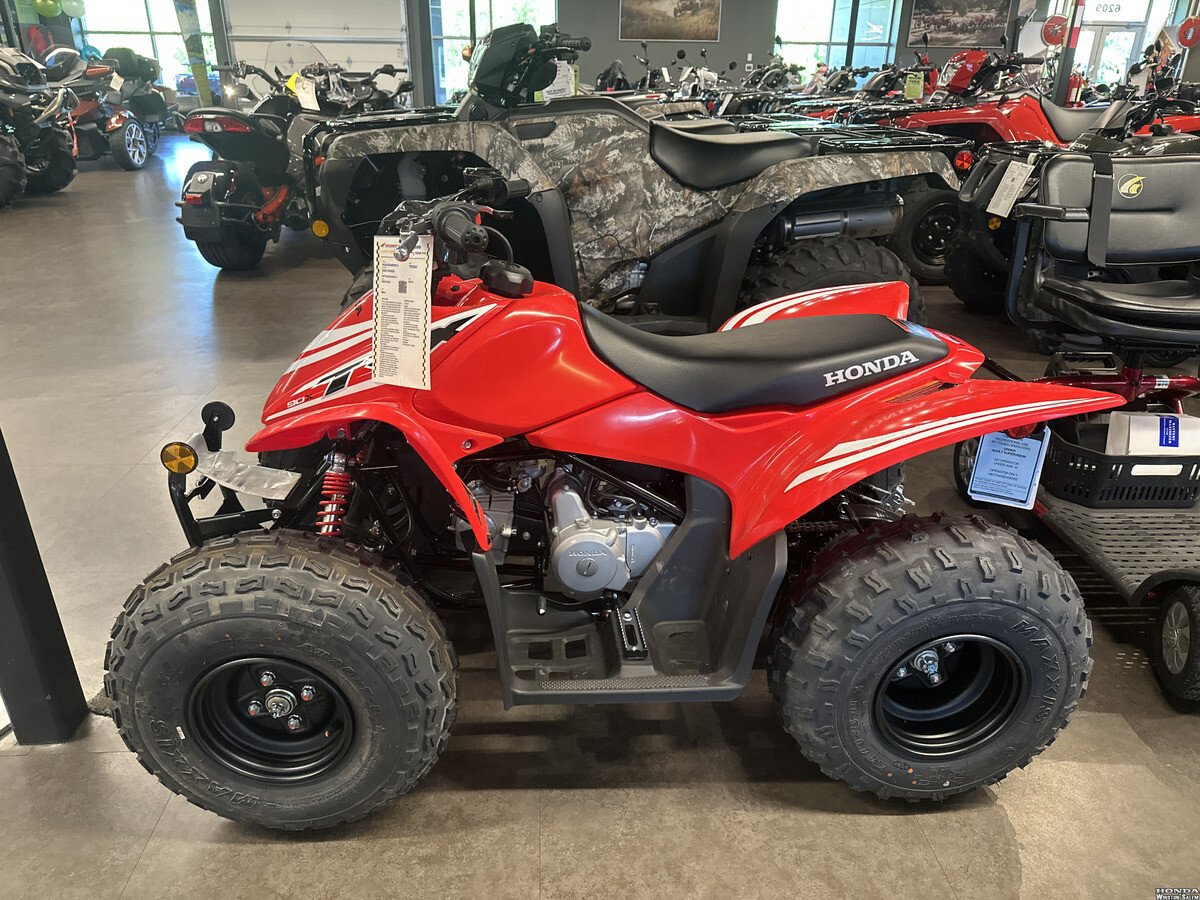

New 2026 Honda TRX90X

Big fun for little rippers

Start their off-road story off right with the TRX90X. Small but mighty, its packed with Honda quality, a no-clutch automatic transmission, and a rider-friendly design that makes it the ideal introduction to adventure. Built just for your little ripper, its easy to see why, year after year, the TRX90X roosts every other ATV in its class.

Rugged, reliable 86cc engine

Our proven 86cc single-overhead-cam (SOHC) four-stroke engine offers smooth, useable power and legendary reliability.

Bump-absorbing front suspension

Up front, independent suspension features a pair of rugged shock absorbers with 2.6 inches of travel for a comfortable, controlled ride.

Single-shock rear suspension

Single-shock rear suspension out back delivers all-day comfort with trail-taming handling.

Semi-automatic transmission

This mighty little ATV features a durable no-clutch automatic transmission that makes takeoffs and shifting a breeze. A versatile foot-operated four-speed gearbox delivers adequate power for the appropriate riding conditions.

Color options

This mighty little ATV is available in classic Honda Red with race-style graphics.

Keyed ignition

Responsible fun is the name of the game. Since this ATV uses a keyed ignition, parents control who goes riding and when.

Electric start

A convenient, push-button electric starter ensures hassle-free starting in all conditions.

Adjustable throttle limiter

The throttle features an adjustable limiter, allowing parents to control the speed and power of the ATV.

Features

86cc air-cooled SOHC single-cylinder four-stroke engine

Electric start

Rugged steel frame

Red colorway with race-style graphics

Keyed ignition

Engine

Engine Type - 86cc air-cooled single-cylinder four-stroke

Bore and Stroke - 47.0mm x 49.5mm

Compression Ratio - 9.2:1

Valve Train - OHV; two valves per cylinder

Induction - 16.0mm piston-valve carburetor

Starter - Electric

Drivetrain

Transmission - Four-speed semi-automatic

Driveline - #428 O-ring-sealed chain; 13T/50T

Chassis Suspension Brakes

Front Suspension - Independent Single A-arms; 2.6-inch travel

Rear Suspension - Swingarm with single shock; 2.6-inch travel

Front Brakes - Dual sealed 110.0mm drums

Rear Brake - Sealed 140.0mm drum

Front Tires - 20 x 7-8

Rear Tires - 19 x 8-8

Dimensions

Length - 58.6 inches

Width - 35.2 inches

Height - 36.5 inches

Wheelbase - 38.7 inches

Seat Height - 26.0 inches

Ground Clearance - 3.9 inches

Curb Weight - 262 pounds (Includes all standard equipment, required fluids and a full tank of fuel)

Fuel Capacity - 1.7 gallons, including 0.3-gallon reserve

Turning Radius - 8.3 feet

Other

Available Colors - Red

Model ID - TRX90X

Important Safety Information - Recommended for riders 10 years of age and older. Honda recommends that all ATV riders take a training course and thoroughly read their owners manual. An adult must supervise TRX90X riders younger than 16 years of age.

Factory Warranty Information

Duration - Transferable, one year included, limited warranty

Optional Extended - Extended coverage available with a HondaCare Protection Plan
